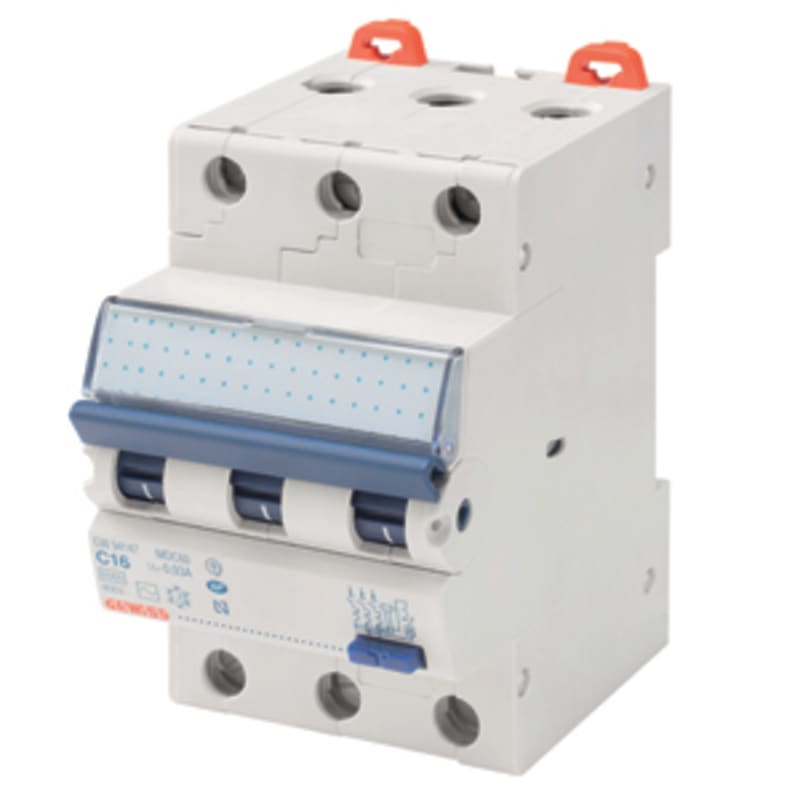

Malthe Winje MDC Residual Current Circuit Breaker with Overcurrent Protection 16A 3P 30mA
Pricing
Request a quote
We reply within 24 hours
Product Description
Malthe Winje GW95247 is a three-pole residual current device with integral overcurrent protection from the MDC series. It carries a C tripping characteristic, 16 A rated current, 30 mA residual operating current, 400 V AC rating, and 10 kA breaking capacity in a 3-module DIN-rail housing. Leakage current type A makes it suitable for household and commercial final circuits protecting against both overcurrent and earth faults.
Technical Specifications
- Manufacturer part number (MPN)
- GW95247
- EAN / GTIN
- 8011564825130
- Sales unit
- pcs
- Poles
- 3P
- Tripping characteristic
- C curve
- Rated current
- 16 A
- Residual operating current
- 30 mA
- Number of poles (total)
- 3
- Number of protected poles
- 3
- Rated voltage
- 400 V
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 1
- Surge current capacity
- 0.25 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Width in number of modular spacings
- 3
- Built-in depth
- 72 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 8011564825130
- SAP 1200927941
- Code 84213493
Product Documentation
