Loose flange aluminium epoxy RAL9016 white - 20, 10bar, 26,9mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Loose flange aluminium epoxy RAL9016 white. Loose flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 20, pressure pn 10 bar, for pipes with outer diameter 26.9 mm. Supplied under manufacturer part number GL81753025, HS code 7609.00, country of origin India.
Technical Specifications
- Product type
- Loose flanges DIN/ISO
- Product group
- Acid-resistant and Stainless fittings
- DN dimension
- 20
- Pressure PN
- 10 bar
- For pipes with outer diameter
- 26.9 mm
- Number of bolt holes
- 4 pcs
- Bolt hole diameter
- 14 mm
- Bolt circle diameter
- 75 mm
- Flange thickness
- 12 mm
- Diameter
- 105 mm
- Inner diameter
- 30 mm
- Tolerance
- DIN2642 PN10
- Weight
- 0.24 kg
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0007 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 76090000
- HS code
- 7609.00
- Manufacturer part number
- GL81753025
Standards & Compliance
- HS Code
- 7609.00
Cross References
- MPN GL81753025
More from Generic
Generic
DIN 439 Locknut stainless A2 - M12, 1,25mm, 50PCS
439MF121254
Generic
Weld Bend acid-resistant welded - 508mm, 9,53mm, 20", 40S, 90°
AB36229250
Generic
Hygienic Weld Bend 90°, Ø51 × 1.2 mm, R51, 316L Satin
DB10344693
Generic
DIN 7500D Thread-Forming Screw External Hex 5 x 16 mm Electro-Galvanised (FZB) 500 pcs
7513A0500162
Generic
DIN 94 Split Pin stainless stainless A2 - 10mm, 0mm
941001004
Generic
DIN 128A Center spring washer hot-dip galvanized hot-dip galvanised FZV - 8mm, 8.2mm, 14.8mm, 200PCS, 1,6mm
128A083
Generic
Hot-rolled plate black S650MC - 3000mm, 1500mm, 5mm
347419
Generic

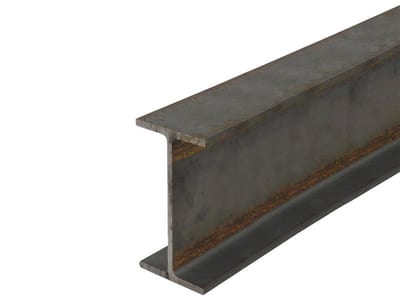

Beam IPE S355 J2 - 300mm, 150mm, 12.1M, 42.4KG/m
