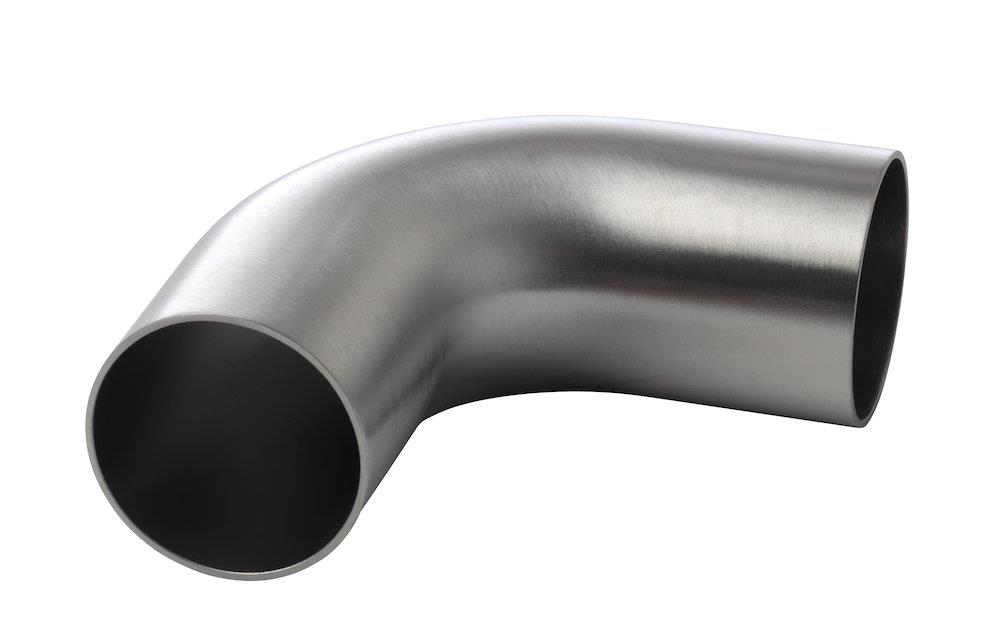

Hygienic Weld Bend 90°, Ø51 × 1.2 mm, R51, 316L Satin
Pricing
Request a quote
We reply within 24 hours
Product Description
Hygienic (food-grade) weld bend 90° for sanitary stainless pipework: outer diameter 51 mm, wall thickness 1.2 mm, bending radius 51 mm; stainless steel 1.4404 (316L), satin finish Ra 0.8 µm, tolerance DS/SMS, material certificate EN 10204 3.1.
Technical Specifications
- Product type
- Hygienic weld bends Product group: Acid-resistant and Stainless fittings Outer diameter: 51 mm Thickness: 1.2 mm Bending radius: 51 mm Angle: 90° Steel quality: 4404/316L material certificate: EN 10204 3.1 Weight: 0.27 kg Fineness: Ra. 0.8 µm Tolerance: DS/SMS L1 dimension: 82 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0015 kg CO2e per pcs Environmental declaration: LCA Country of origin: China Customs tariff code (EU CN): 73072310 HS code: 7307.23 Manufacturer part number: DB10344693 VVS number: 032203051
Standards & Compliance
- HS Code
- 7307.23
Cross References
- MPN DB10344693
- VVS 032203051
Product Documentation
