LEDVANCE

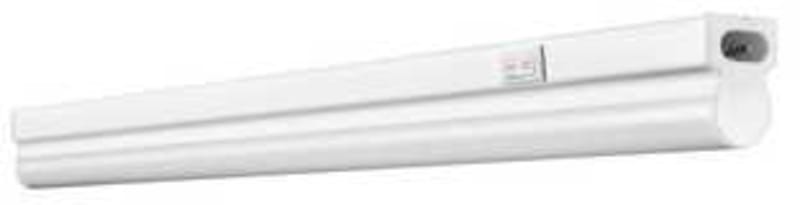

Linear LED 300 4W/830 400LM

Name: Linear LED 300 4W/830 400LM
Brand: LEDVANCE
SKU: 5705150098475

Part number5705150098475EAN / GTIN4058075106079HS code8543.70

Lighting & Electrical Accessories

LED Lights

MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote

Email Datasheet

Product Description

LEDVANCE 5705150098475 System luminaire with switch, SDCM5, Ra>80, L70 50 000t, light distribution 140°.

Technical Specifications

Manufacturer part number (MPN): 5705150098475
EAN / GTIN: 4058075106079
HS code: 8543.70
Sales unit: pcs
Package quantity: 25 pcs
Power: 4 W
Luminous flux: 400 lm
Protection class according to IEC 61140: II
Width: 28 mm
Lamp power: 4 W
Suitable for loop-through wiring: Yes
Height: 36 mm
Housing colour: White
Dimmable: No
Voltage type: AC
With movement sensor: No
Suitable for lamp power: 8 W
Type of control gear: LED operating device current-controlled
Colour rendering index CRI: 80-89
With switch: Yes
With light sensor: No
Number of poles: 2
Length: 573 mm
Height/depth: 36 mm
Material: Plastic
Lamp type: LED not exchangeable
Electrical connection with connector system: No
Suitable for emergency lighting: No
Impact strength: IK02
Nominal voltage: 220–240 V
Emergency power supply integrated: No
Degree of protection (IP): IP20
With light source: Yes
Suitable for number of light sources: 1
With control gear: Yes
Nominal current: 30 mA
Colour temperature: 3000 K
Max. system power: 8 W
Rated luminous flux according to IEC 62722-2-1: 400 lm
Colour of light: White
Constant light output (CLO): No
IFTTT support available: No
Type of wiring: Loop-through wiring included
Rated lifetime L70/B50 at 25 °C: 50000 h
Rated life time L80/B10 at 25 °C: 40000 h
Rated life time L90/B10 at 25 °C: 30000 h
Filament test according to IEC 60695-2-11: 850 °C - 30 s
LED nominal current at constant current: 0.03 mA
Dimming 0-10 V: No
Dimming 1-10 V: No
Dimming DALI: No
Dimming DMX: No
Dimming potentiometer (integrated): No
Dimming GPRS: No
Dimming LineSwitch: No
Dimming manufacturer's proprietary system: No
Dimming mains voltage modulation: No
Dimming phase cut-off (trailing edge): No
Dimming phase cut-on (leading edge): No
Dimming programmable: No
Dimming RF: No
Dimming Its Wave Reduction: No
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming with push-button: No
No dim function: Yes
Light distributor: None
Luminaire efficacy: 100 lm/W
Dimming DSI: No
Energy efficiency class of the built-in lamp: A++, A+, A (LED)
Operation by Bluetooth: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
Dimming DALI-2: No
Colour of light adjustable: No
Luminous flux adjustable: No
Beam angle adjustable: No
Exchangeable control gear: No
Power factor: 0.5
Country of origin: China

Standards & Compliance

HS Code: 8543.70

Cross References

EAN 4058075106079
SAP 1000748016
Code 8449712

Product Documentation

Linear LED 300 4W/830 400LM (5705150098475) — Specification sheet Download

Document preview: Linear LED 300 4W/830 400LM (5705150098475) — Specification sheet
