LEDVANCE

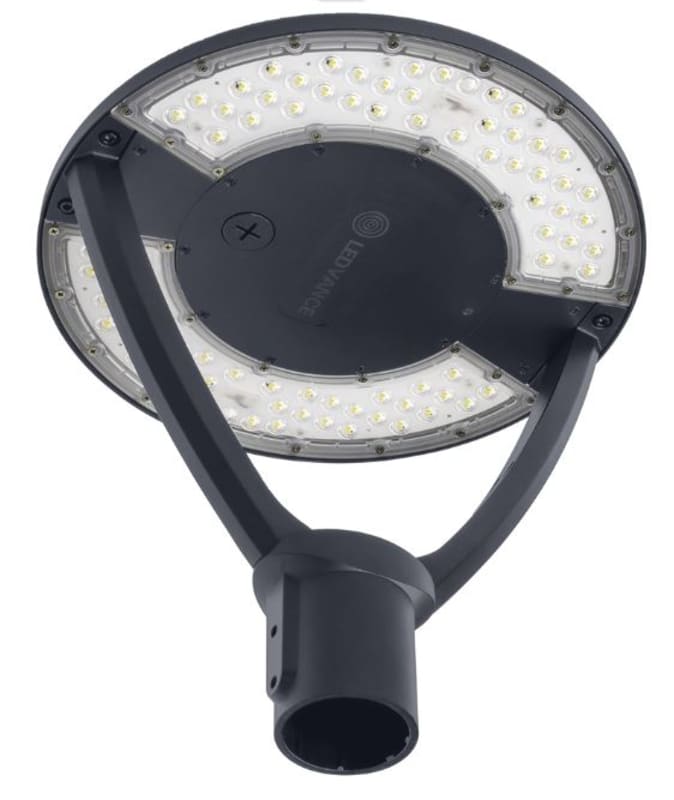

Urban Lantern SYM 29W PS GY 830/840 IP66
Part number4099854246838EAN / GTIN4099854246838HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
LEDVANCE 4099854246838 2040-3945lm, 3000K/4000K, Ra80, 15-29W, 145° 100 000 T (L70/B50), 136lm/W, 5 sdcm 220-250V IP66.
Technical Specifications
- Manufacturer part number (MPN)
- 4099854246838
- EAN / GTIN
- 4099854246838
- Sales unit
- pcs
- Lifecycle status
- Phased out
- IP rating
- IP66
- Power
- 29 W
- Mounting method
- Post top
- Protection class according to IEC 61140
- II
- Lamp holder
- None
- Housing colour
- Grey
- Dimmable
- No
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Type of control gear
- Electronic ballast
- Colour rendering index CRI
- 80-89
- Cable length
- 0.25 m
- Diameter
- 395 mm
- With light sensor
- No
- Number of poles
- 2
- Length
- 395 mm
- Height/depth
- 417 mm
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Material cover
- Plastic, opal
- Impact strength
- IK10
- With connection cable
- Yes
- Nominal voltage
- 220–250 V
- Degree of protection (IP)
- IP66
- With light source
- Yes
- With control gear
- Yes
- Adjustable optics
- No
- Suitable for spigot size
- 48–60 mm
- Nominal current
- 70–130 mA
- Colour temperature
- 3000–4000 K
- Max. system power
- 29 W
- Rated luminous flux according to IEC 62722-2-1
- 3945 lm
- Colour of light
- White
- Remote control
- None
- With radio control
- No
- With light regulation program control
- No
- Constant light output (CLO)
- No
- IFTTT support available
- Yes
- Type of wiring
- Ending
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Colour consistency (McAdam ellipse)
- SDCM5
- Rated ambient temperature according to IEC 62722-2-1
- -30–50 °C
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- Yes
- Light distributor
- Focal lens
- Luminaire efficacy
- 136 lm/W
- Dimming DSI
- No
- Operation by Bluetooth
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Dimming DALI-2
- No
- Exchangeable control gear
- No
- Power factor
- 0.9
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 4099854246838
- SAP 1200766837
- Code 83933758
Product Documentation
Document preview: Urban Lantern SYM 29W PS GY 830/840 IP66 (4099854246838) — Specification sheet
