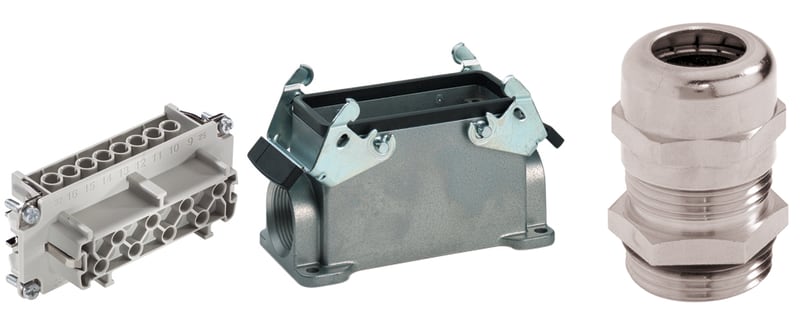

LAPP EPIC® KIT H-BE 16 BS complete connector kit, aluminium socket case, IP65, with SKINTOP® MS-M 25 x 1.5 cable gland

Complete EPIC rectangular connector kit in the H-BE 16 BS configuration, supplied as a socket case (base housing). Contains EPIC® H-B 16 SGR housing and SKINTOP® MS-M 25 x 1.5 cable gland. Aluminium housing with a powder coating finish, grey. Closed by a double locking lever. 1 conduit inlet, cable entry sideways, metric cable gland thread. Housing dimensions W 43 mm x H 64 mm x D 93.3 mm. Ingress protection IP65 when mounted. Supplied with a sealing gasket. Corrosion resistant. Not an EMC-screened version. Operating temperature -40–125 °C. Country of origin Germany. HS code 8536.69. LAPP reference: SAP 1200927844, code 84218590.

Manufacturer part number (MPN)

75009724

EAN / GTIN

4044776572053

Sales unit

pcs

Width

43 mm

UV resistant

Yes

Height

64 mm

Depth

93.3 mm

With hinged lid

No

Housing colour

Grey

Type of locking

Double locking lever

Number of conduit inlets

1

With cable screw gland

No

EMC-version

No

Corrosion resistant

Yes

Housing material

Aluminium

Coating housing

Powder coating

Operating temperature

-40–125 °C

With distance piece

No

With sealing

Yes

Type of housing

Socket case

Degree of protection (IP), mounted

IP65

Position cable feed

Sideways

Position of the shackle

Base unit

Mounting method of the cable gland

Metric

Country of origin

Germany

HS Code

8536.69

• EAN 4044776572053
• SAP 1200927844
• Code 84218590
