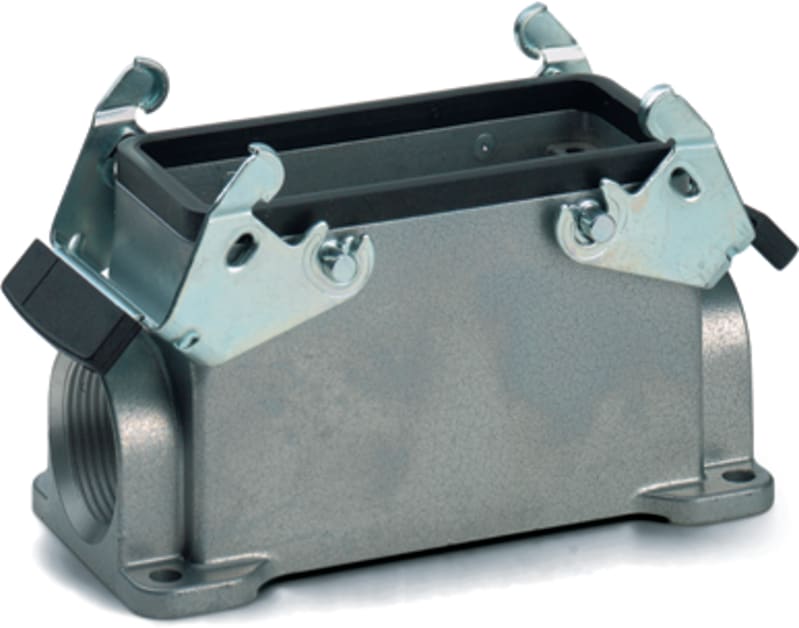

LAPP H-B 16 Wall-Mount Base 16-Pole M25 with Double Locking Levers
Pricing
Request a quote
We reply within 24 hours
Product Description
LAPP 19074000 is a rectangular heavy-duty connector base housing for 16-pole inserts, configured for wall or panel mounting with a single M25 cable entry and double locking levers. The powder-coated aluminium body is UV, corrosion and impact resistant with an IP65 seal and an operating range of -40 to 125 °C. Sideways cable feed with metric gland fitting.
Technical Specifications
- Manufacturer part number (MPN)
- 19074000
- EAN / GTIN
- 4044773087208
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Width
- 43 mm
- UV resistant
- Yes
- Height
- 64 mm
- Depth
- 93.3 mm
- Shape
- Rectangular
- With hinged lid
- No
- Housing colour
- Grey
- Type of locking
- Double locking lever
- Number of conduit inlets
- 1
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- Yes
- Length
- 93.3 mm
- Housing material
- Aluminium
- Coating housing
- Powder coating
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- Yes
- Type of housing
- Socket case
- With interlocking device
- Yes
- Degree of protection (IP), mounted
- IP65
- Position cable feed
- Sideways
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- Metric
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4044773087208
- SAP 1000291560
- Code 8112123
Product Documentation
More from LAPP
LAPP

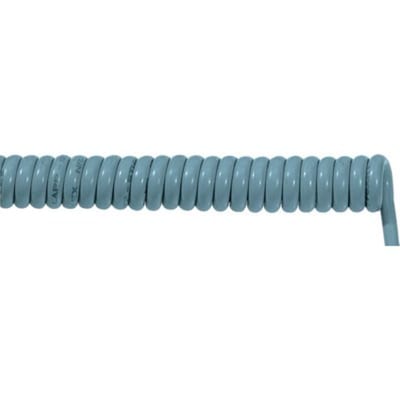

Olflex® Spiral 400P 4G0,75 1500mm
70002636
LAPP

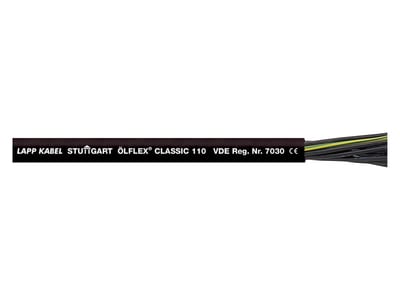

Ölflex® Classic 110 25G1 BK
1119251
LAPP

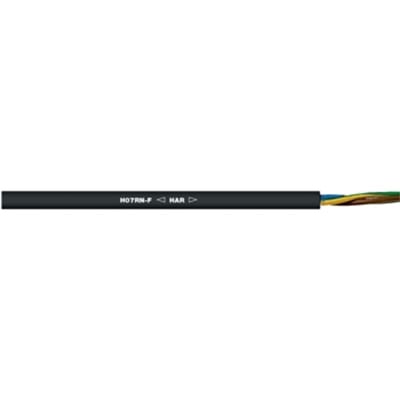

H07RN-F 19 G1,5 MM2 (1600259)
