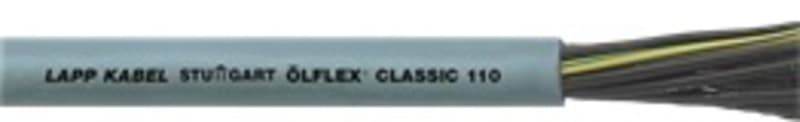

LAPP ÖLFLEX CLASSIC 110 3G0.75 Control Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
LAPP ÖLFLEX CLASSIC 110 3G0.75 is a VDE-registered, oil-resistant flexible PVC control cable for fixed installation and occasional flexing under medium mechanical stress — machine tools, plant and mechanical engineering, conveyor and assembly lines, and measuring and control technology. Conductor configuration 3 G 0.75 mm² (2 × 0.75 mm² + GN/YE protective conductor). Fine-wire bare-copper conductors to IEC 60228 / EN 60228 class 5; PVC core insulation (LAPP P8/1); black cores with white numbering to VDE 0293-334; cores stranded in layers; grey PVC outer sheath (approx. RAL 7001). Rated voltage U0/U 300/500 V, test voltage 4000 V AC. Outer diameter 5.7 mm, weight 55 kg/km, copper index 21.6 kg/km. Flame-retardant to IEC 60332-1-2; oil-resistant to DIN EN 50290-2-22. Manufacturer article 1119103, EAN 4044773067996.
Technical Specifications
- Manufacturer
- LAPP Series: ÖLFLEX CLASSIC 110 Manufacturer article no. (MPN): 1119103 EAN / GTIN: 4044773067996 Conductor configuration: 3 G 0.75 mm² Make-up: 2 × 0.75 mm² + GN/YE protective conductor Number of cores: 3 Cross-section per core: 0.75 mm² Protective conductor: green/yellow (GN/YE) Rated voltage U0/U: 300/500 V Test voltage: 4000 V AC (core/core) Conductor: bare copper, fine-wire class 5 (IEC 60228 / EN 60228) Insulation: PVC compound (LAPP P8/1) Core identification: black cores, white numbers (VDE 0293-334) Outer sheath: PVC, grey (approx. RAL 7001) Outer diameter: 5.7 mm Weight: 55 kg/km Copper index: 21.6 kg/km minimum bending radius: 4 × Ø (fixed) / 10 × Ø (occasional flexing) Temperature range: -40 °C to +80 °C (fixed) / -15 °C to +70 °C (flexing) Flame retardancy: IEC 60332-1-2 / EN 60332-1-2 Oil resistance: DIN EN 50290-2-22 Standards / approval: EN 50525-2-51; VDE reg. no. 7030 HS code: 8544.49 Sales unit: m Package quantity: 500 m
Standards & Compliance
- Standard
- EN 50525-2-51; VDE reg. 7030
- Material
- Bare copper conductor; PVC insulation and sheath
- Temperature Range
- -40 °C to +80 °C (fixed installation)
- Classification / Approval
- VDE registered (reg. no. 7030)
- HS Code
- 8544.49
Cross References
- EAN 4044773067996
- SAP 1000339834
- Code 8373496
Product Documentation
More from LAPP
LAPP
LAPP ÖLFLEX CLASSIC 110 7G0.75 Control Cable
1119107
LAPP
BETAFLAM145°c 1X2X0,5mm²DNV (1111508)
LAPP
LAPP ÖLFLEX CLASSIC 110 12G0.75 Control Cable
1119112
LAPP
LAPP ÖLFLEX Classic 130 H 5G0.75 mm² Control Cable
1123037
LAPP
LAPP ÖLFLEX CLASSIC 110 2X1.5 Control Cable
1119902
LAPP
LAPP ÖLFLEX CLASSIC 110 4G0.75 Control Cable
1119104
LAPP
LAPP ÖLFLEX CLASSIC 110 5G0.75 Control Cable
1119105
LAPP
LAPP ÖLFLEX CLASSIC 110 4G1.5 Control Cable
1119304
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1119103?
- 1119103 can be ordered from cballast.com as a LAPP catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this LAPP product?
- The manufacturer part number is 1119103.
- What is the HS code for 1119103?
- The customs tariff (HS) code for 1119103 is 8544.49.
- Who manufactures 1119103?
- 1119103 is a LAPP product in the Cables & Wiring range.
- Is a datasheet available for 1119103?
- Yes — the 1119103 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1119103?
- The minimum order quantity is 1.
- Is 1119103 available?
- Yes — 1119103 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
