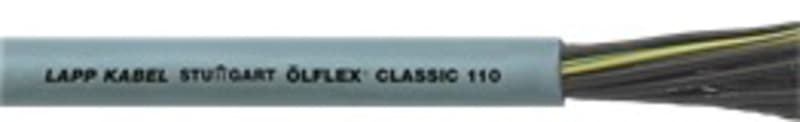

LAPP ÖLFLEX CLASSIC 110 2X1.5 Control Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
LAPP ÖLFLEX CLASSIC 110 2X1.5 is a VDE-registered, oil-resistant flexible PVC control cable for fixed installation and occasional flexing under medium mechanical stress — machine tools, plant and mechanical engineering, conveyor and assembly lines, and measuring and control technology. Conductor configuration 2 X 1.5 mm² (2 × 1.5 mm² (numbered cores, no protective conductor)). Fine-wire bare-copper conductors to IEC 60228 / EN 60228 class 5; PVC core insulation (LAPP P8/1); black cores with white numbering to VDE 0293-334; cores stranded in layers; grey PVC outer sheath (approx. RAL 7001). Rated voltage U0/U 300/500 V, test voltage 4000 V AC. Outer diameter 6.3 mm, weight 68 kg/km, copper index 29 kg/km. Flame-retardant to IEC 60332-1-2; oil-resistant to DIN EN 50290-2-22. Manufacturer article 1119902, EAN 4044773060591.
Technical Specifications
- Manufacturer
- LAPP Series: ÖLFLEX CLASSIC 110 Manufacturer article no. (MPN): 1119902 EAN / GTIN: 4044773060591 Conductor configuration: 2 X 1.5 mm² Make-up: 2 × 1.5 mm² (numbered cores, no protective conductor) Number of cores: 2 Cross-section per core: 1.5 mm² Protective conductor: none (X type — numbered cores only) Rated voltage U0/U: 300/500 V Test voltage: 4000 V AC (core/core) Conductor: bare copper, fine-wire class 5 (IEC 60228 / EN 60228) Insulation: PVC compound (LAPP P8/1) Core identification: black cores, white numbers (VDE 0293-334) Outer sheath: PVC, grey (approx. RAL 7001) Outer diameter: 6.3 mm Weight: 68 kg/km Copper index: 29 kg/km minimum bending radius: 4 × Ø (fixed) / 10 × Ø (occasional flexing) Temperature range: -40 °C to +80 °C (fixed) / -15 °C to +70 °C (flexing) Flame retardancy: IEC 60332-1-2 / EN 60332-1-2 Oil resistance: DIN EN 50290-2-22 Standards / approval: EN 50525-2-51; VDE reg. no. 7030 HS code: 8544.49 Sales unit: m Package quantity: 500 m
Standards & Compliance
- Standard
- EN 50525-2-51; VDE reg. 7030
- Material
- Bare copper conductor; PVC insulation and sheath
- Temperature Range
- -40 °C to +80 °C (fixed installation)
- Classification / Approval
- VDE registered (reg. no. 7030)
- HS Code
- 8544.49
Cross References
- EAN 4044773060591
- SAP 1000487516
- Code 8799987
Product Documentation
More from LAPP
LAPP
LAPP ÖLFLEX CLASSIC 110 4G0.75 Control Cable
1119104
LAPP
LAPP ÖLFLEX CLASSIC 110 5G0.75 Control Cable
1119105
LAPP
LAPP ÖLFLEX CLASSIC 110 4G1.5 Control Cable
1119304
LAPP
LAPP ÖLFLEX Classic 110 CY 4G1.5 mm² Screened Control Cable
106089
LAPP
LAPP ÖLFLEX Classic 130 H 3G0.75 mm² Control Cable
1123033
LAPP
Unitronic LD 2X2X0,22
2170204
LAPP
LAPP ÖLFLEX Classic 130 H 4G0.75 mm² Control Cable
1123035
LAPP
Ölflex® HEAT 260 MC 4G0,75
0091307/1
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1119902?
- 1119902 can be ordered from cballast.com as a LAPP catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this LAPP product?
- The manufacturer part number is 1119902.
- What is the HS code for 1119902?
- The customs tariff (HS) code for 1119902 is 8544.49.
- Who manufactures 1119902?
- 1119902 is a LAPP product in the Cables & Wiring range.
- Is a datasheet available for 1119902?
- Yes — the 1119902 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1119902?
- The minimum order quantity is 1.
- Is 1119902 available?
- Yes — 1119902 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
