LAPP
ØLFLEX-110 CH/03 2 X 0.75
Part number1085900EAN / GTIN4044774391762HS code8544.49
Cables & Wiring
Control Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

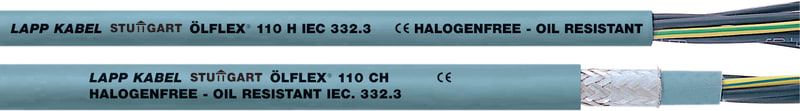

LAPP 1085900 ØLFLEX®-110 CH/03 2 X 0.75.
Technical Specifications
- Manufacturer part number (MPN)
- 1085900
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1085900
- EAN / GTIN
- 4044774391762
- ETIM class
- EC003250 - Power cable < 1 kV, for moving application
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- France
- HS code
- 85444921
- EU customs tariff number
- 8544499500
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 92 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 500
- Nominal cross section conductor (mm²)
- 0.75
- Nominal voltage U0 (V)
- 300
- Conductor resistance at 20 °C (Ohm/km)
- 26
- Number of cores
- 2
- Weight (kg/km)
- 92
- Min. permitted bending radius, moving application/free movement (mm)
- 115.5
- Outer diameter approximate (mm)
- 7.7
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 46.2
- Max. permitted conductor temperature (°C)
- 70
- Permitted cable outer temperature during assembling/handling (°C)
- -30 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 80
- Screen
- Yes
- Flame retardant according to IEC 60332-1-2
- Yes
- Flame retardant according to IEC 60332-3-22 (Cat A)
- Yes
- Flame retardant according to IEC 60332-3-24 (Cat C)
- Yes
- Low temperature resistant according to EN 60811-504+505+506
- Yes
- Flame retardant according to IEC 60332-3-25 (Cat D)
- Yes
- Low smoke according to EN IEC 61034-2
- Yes
- Halogen free according to EN IEC 60754-1
- Yes
- Halogen free according to EN IEC 60754-2
- Yes
- Oil resistant according to EN IEC 60811-404
- Yes
- Core identification according to HD 308 S2
- No
- With protective conductor
- No
- Torsion resistant
- No
- Flame retardant according to IEC 60332-3-21 (Cat A F/R)
- No
- Flame retardant according to IEC 60332-3-23 (Cat B)
- No
- Halogen free according to EN IEC 60754-3
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- 4044773032222
Product Documentation
Document preview: ØLFLEX-110 CH/03 2 X 0.75 (1085900) — Series Data Sheet (OEM, English)
