LAPP
Ølflex 100 3G0,75MM2
Part number1071161EAN / GTIN4044774896786HS code8544.49
Cables & Wiring
Control Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
LAPP 1071161 ØLFLEX® 100 3G0,75mm2.
Technical Specifications
- Manufacturer part number (MPN)
- 1071161
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1071161
- EAN / GTIN
- 4044774896786
- ETIM class
- EC003250 - Power cable < 1 kV, for moving application
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 85444921
- EU customs tariff number
- 8544499500
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 55 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 500
- Nominal cross section conductor (mm²)
- 0.75
- Nominal voltage U0 (V)
- 300
- Conductor resistance at 20 °C (Ohm/km)
- 26
- Number of cores
- 3
- Weight (kg/km)
- 55
- Min. permitted bending radius, moving application/free movement (mm)
- 85.5
- Outer diameter approximate (mm)
- 5.7
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 22.8
- Max. permitted conductor temperature (°C)
- 70
- Permitted cable outer temperature during assembling/handling (°C)
- -5 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 80
- Core identification according to HD 308 S2
- Yes
- With protective conductor
- Yes
- Flame retardant according to IEC 60332-1-2
- Yes
- Low temperature resistant according to EN 60811-504+505+506
- Yes
- Screen
- No
- Drain wire
- No
- Torsion resistant
- No
- Flame retardant according to IEC 60332-3-21 (Cat A F/R)
- No
- Flame retardant according to IEC 60332-3-22 (Cat A)
- No
- Flame retardant according to IEC 60332-3-23 (Cat B)
- No
- Flame retardant according to IEC 60332-3-24 (Cat C)
- No
- Flame retardant according to IEC 60332-3-25 (Cat D)
- No
- Low smoke according to EN IEC 61034-2
- No
- Halogen free according to EN IEC 60754-1
- No
- Halogen free according to EN IEC 60754-2
- No
- Halogen free according to EN IEC 60754-3
- No
- Oil resistant according to EN IEC 60811-404
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- 4044773009750
Product Documentation
Document preview: ØLFLEX 100 3G0,75MM2 (1071161) — Series Data Sheet (OEM, English)
More from LAPP
LAPP
ÖLFLEX® 2XSLCH-JB 3X6+3G1
1133517
LAPP
EPIC® DATA RJ45 CAT.6A Field Plug 568B (21700637)
LAPP
Ölflex® Robust 215 C 3X0,75
0022719
LAPP
Ölflex® HEAT 180 Sihf 4 G 10
00460373
LAPP
ÖLFLEX -CLASSIC-110 CY 4 G 10
106044
LAPP
Unitronic Liycy 3X1 (1091756)
LAPP

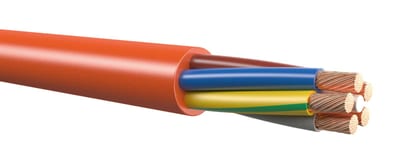

Roflex 3G4 (11139301)
