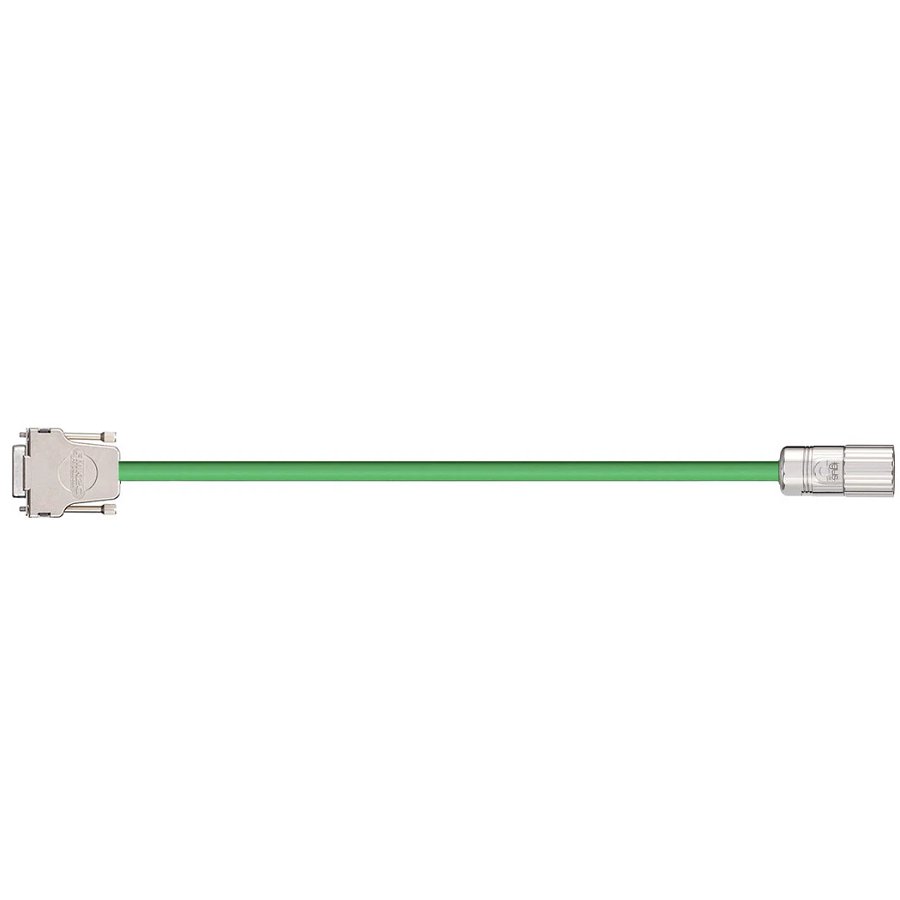

readycable® signal cable suitable for Siemens 6FX_002-2EQ31, base cable, PVC 15 x d (MAT9741511)

igus readycable® signal cable suitable for Siemens 6FX_002-2EQ31, base cable, PVC 15 x d (MAT9741511) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: SUB-D, pin; Connector B: round plug, socket; Copper index kg/km: 50 kg/km; Core group 1 core structure: 3x(2x0.14)C; Core group 1 colour code: green/yellow, black/brown, red/orange.

Manufacturer part number (MPN)

6FX_002-2EQ31

Brand

IGUS

Category

Tools

Cable type

Basic cable

Connector A

SUB-D, pin

Connector B

round plug, socket

Number of cores and conductor nominal cross-section

(3x(2x0.14)C+(4x0.14)+(4x0.22)+(2x0.5))C

Copper index kg/km

50 kg/km

Core group 1 core structure

3x(2x0.14)C

Core group 1 colour code

green/yellow, black/brown, red/orange

Core group 2 core structure

4x0.14

Core group 2 colour code

grey, blue, white-yellow, white-black

Core group 3 core structure

4x0.22

Core group 3 colour code

grey-brown,green-black,green-red,yellow-brown

Core group 4 core structure

2x0.5

Core group 4 colour code

brown-blue,brown-red

Shipping weight (kg or kg/m)

0.1752992

Outer diameter (d) max. mm

9 mm

Weight per km

101 kg/km

Min. bend radius, e-chain (factor)

15 x d

Min. bend radius, e-chain

135 mm

Min. bend radius, flexible (factor)

12 x d

Min. bend radius, flexible

108 mm

Min. bend radius, fixed (factor)

8 x d

Min. bend radius, fixed

72 mm

Temperature e-chain®

+5°C up to +70°C

Temperature, flexible

-5°C to +70°C (according to DIN EN 60811-504)

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

v max. unsupported (speed)

3 m/s

a max. (acceleration)

20 m/s²

travel length

Unsupported up to 10 m

torsion

No Torsion

Conductor

Conductor consisting of bare copper wires (according to DIN EN 60228)

Core insulation

Mechanically high-quality TPE mixture.

Core stranding

According to measuring system specification

Overall shield

Braiding made of tinned copper wires. Cover approx. 60% optical.

Element shield

Foil taping of optimised, flexible foil shield. Cover approx. 100% optical

Outer jacket

Low-adhesion PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).

Outer jacket colour

Yellow-green (comparable to RAL 6018)

Nominal voltage

50V

Test voltage

500V

Oil resistance

No oil resistance

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00295/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

CE

According to 2014/35/EU

UL/CSA AWM

Style 1589 and 2560, 30 V, 60 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
