readycable® signal cable suitable for Siemens 6FX_002-2CR00, base cable, PVC 15XD (MAT9741523)

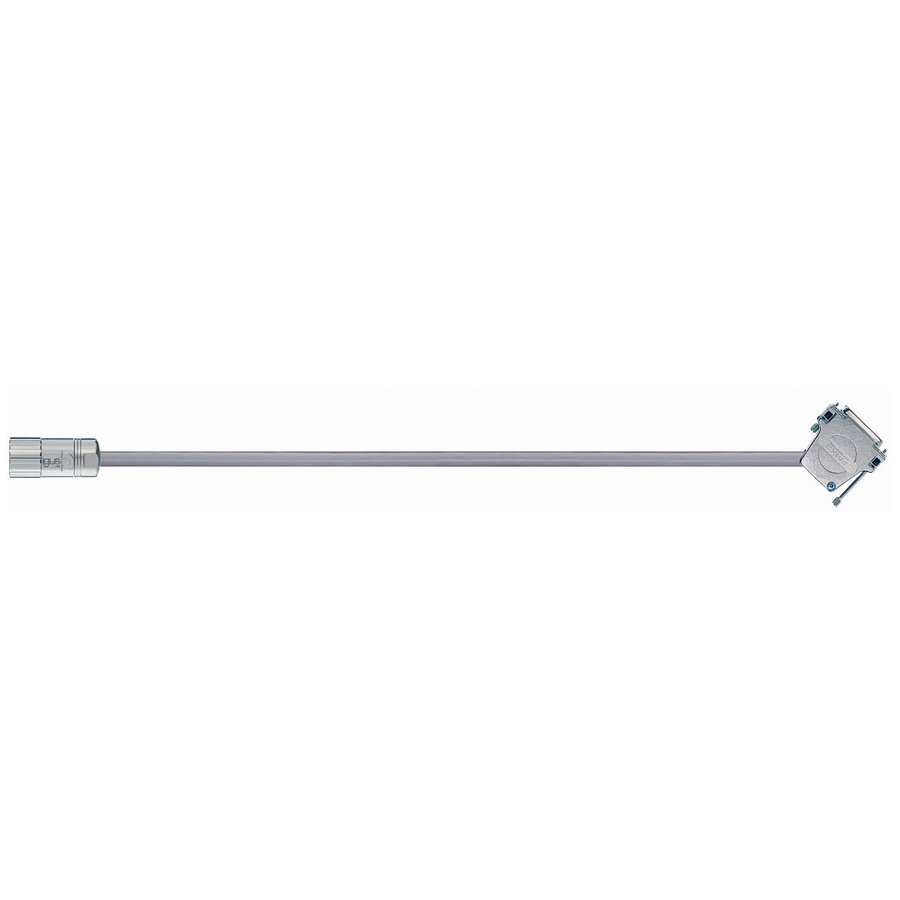

igus readycable® signal cable suitable for Siemens 6FX_002-2CR00, base cable, PVC 15XD (MAT9741523) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: Connector M23 12-pin; Connector B: SUB-D pin 15-pin angled; Copper index kg/km: 64 kg/km; Core group 1 core structure: 4x(2x0.34); Core group 2 core structure: 4x0.5.

Manufacturer part number (MPN)

6FX_002-2CR00

Brand

IGUS

Category

Tools

Cable type

Basic cable

Connector A

Connector M23 12-pin

Connector B

SUB-D pin 15-pin angled

Number of cores and conductor nominal cross-section

(4x(2x0.34)+4x0.5)C

Copper index kg/km

64 kg/km

Core group 1 core structure

4x(2x0.34)

Core group 1 colour code

black/brown, red/orange, yellow/green, blue/violet

Core group 2 core structure

4x0.5

Core group 2 colour code

blue-white, black-white, red-white, yellow-white

Shipping weight (kg or kg/m)

0.1616992

Outer diameter (d) max. mm

9.5 mm

Weight per km

117 kg/km

Min. bend radius, e-chain (factor)

15 x d

Min. bend radius, e-chain

142.5 mm

Min. bend radius, flexible (factor)

12 x d

Min. bend radius, flexible

114 mm

Min. bend radius, fixed (factor)

8 x d

Min. bend radius, fixed

76 mm

Temperature e-chain®

+5°C up to +70°C

Temperature, flexible

-5°C to +70°C (according to DIN EN 60811-504)

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

v max. unsupported (speed)

3 m/s

a max. (acceleration)

20 m/s²

travel length

Unsupported up to 10 m

torsion

No Torsion

Conductor

Conductor consisting of bare copper wires (according to DIN EN 60228)

Core insulation

Mechanically high-quality TPE mixture.

Core stranding

According to measuring system specification

Overall shield

Braiding made of tinned copper wires. Cover approx. 60% optical.

Element shield

Foil taping of optimised, flexible foil shield. Cover approx. 100% optical

Outer jacket

Low-adhesion PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).

Outer jacket colour

Yellow-green (comparable to RAL 6018)

Nominal voltage

50V

Test voltage

500V

Oil resistance

No oil resistance

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00295/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

CE

According to 2014/35/EU

UL/CSA AWM

Style 1589 and 2560, 30 V, 60 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
