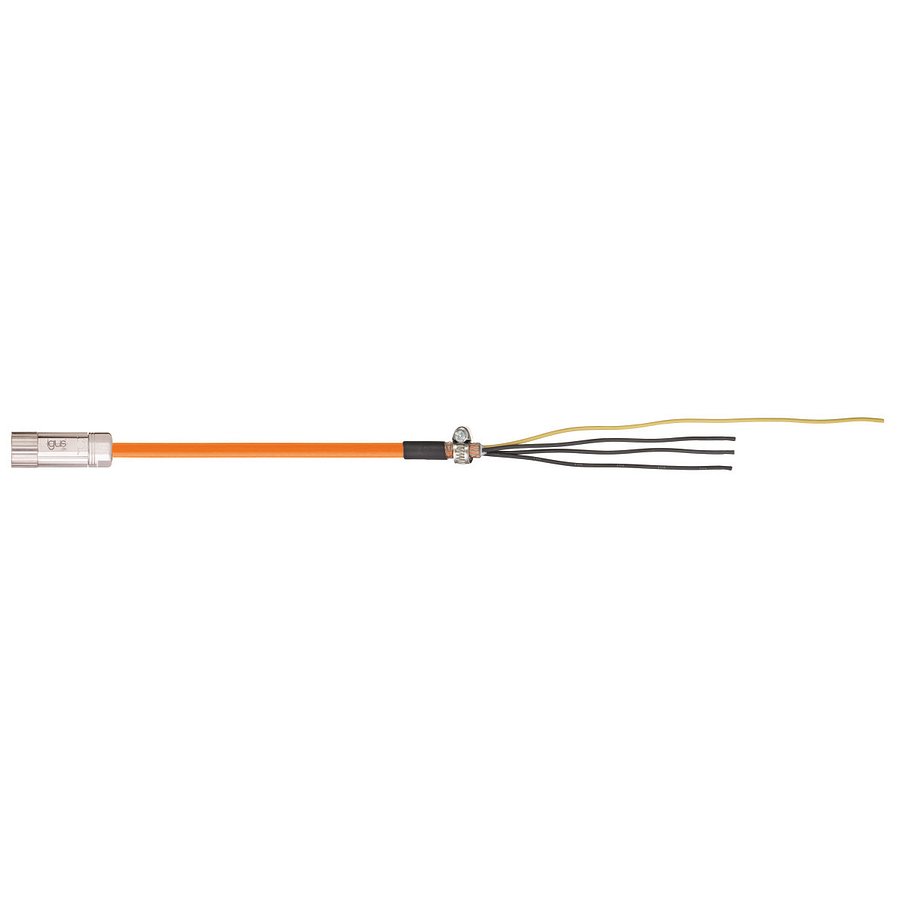

readycable® servo cable suitable for Siemens 6FX8002-5DN46, base cable, PVC 15 x d (MAT97515112)

igus readycable® servo cable suitable for Siemens 6FX8002-5DN46, base cable, PVC 15 x d (MAT97515112) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: M40 connector, socket, 6-pin; Connector B: Sinamics connector; Copper index kg/km: 236 kg/km; Core group 1 core structure: 4G4; Core group 2 core structure: (2x1.5)C)C.

Manufacturer part number (MPN)

6FX8002-5DN46

Brand

IGUS

Category

Tools

Cable type

Basic cable

Connector A

M40 connector, socket, 6-pin

Connector B

Sinamics connector

Number of cores and conductor nominal cross-section

(4G4.0+(2x1.5)C)C

Copper index kg/km

236 kg/km

Core group 1 core structure

4G4

Core group 2 core structure

(2x1.5)C)C

Shipping weight (kg or kg/m)

0.46036

Outer diameter (d) max. mm

14.5 mm

Weight per km

340 kg/km

Min. bend radius, e-chain (factor)

15 x d

Min. bend radius, e-chain

217.5 mm

Min. bend radius, flexible (factor)

12 x d

Min. bend radius, flexible

174 mm

Min. bend radius, fixed (factor)

8 x d

Min. bend radius, fixed

116 mm

Temperature e-chain®

+5°C up to +70°C

Temperature, flexible

-5°C to +70°C (according to DIN EN 60811-504)

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

v max. unsupported (speed)

3 m/s

a max. (acceleration)

20 m/s²

travel length

Unsupported up to 10 m

torsion

No Torsion

Conductor

Conductor consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality, especially low-capacitance TPE mixture.

Core stranding

Power cores and control pair elements wound together in an optimised pitch length.

Overall shield

Braiding made of tinned copper wires. Cover approx. 60% optical.

Element shield

Foil taping of optimised, flexible foil shield.

Outer jacket

Low-adhesion PVC mixture, adapted to suit the requirements in e-chains®.

Outer jacket colour

Pastel orange (comparable to RAL 2003)

Nominal voltage

600/1,000V (according to DIN VDE 0298-3)

Test voltage

4000V (according to DIN EN 50395)

Oil resistance

No oil resistance

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00302/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

CE

According to 2014/35/EU

UL/CSA AWM

Style 10492 and 2570, 1000 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42

• OEM-URL https://www.igus.com/product/MAT97515112
