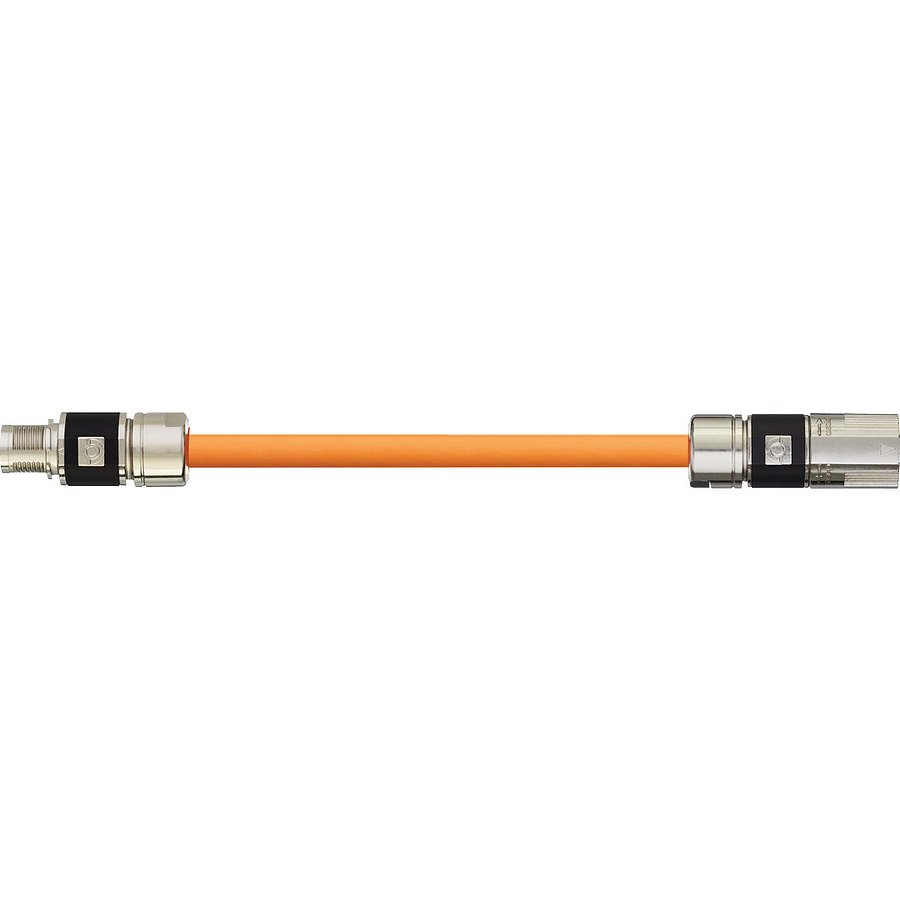

readycable® hybrid servo cable, suitable for Siemens 6FX_002-8QE04 extension cable, PVC 10XD (MAT97515131)

igus readycable® hybrid servo cable, suitable for Siemens 6FX_002-8QE04 extension cable, PVC 10XD (MAT97515131) is listed under Safety & Detection / Tools. Connector A: val_265; Connector B: val_281; Copper index kg/km: 78 kg/km; Shipping weight (kg or kg/m): 0.002516; Outer diameter (d) max. mm: 10 mm; Weight per km: 128 kg/km.

Manufacturer part number (MPN)

6FX_002-8QE04

Brand

IGUS

Category

Tools

Connector A

val_265

Connector B

val_281

Number of cores and conductor nominal cross-section

(4G0.34+(2x0.34)C+(4xAWG26)C)C

Copper index kg/km

78 kg/km

Shipping weight (kg or kg/m)

0.002516

Outer diameter (d) max. mm

10 mm

Weight per km

128 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

100 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

80 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

50 mm

Temperature e-chain®

+5°C up to +70°C

Temperature, flexible

-5°C to +70°C (according to DIN EN 60811-504)

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

v max. gliding (speed)

2 m/s

a max. (acceleration)

50 m/s²

travel length

Travels up to 10 m

torsion

No Torsion

Conductor

Stranded conductor in a bend-resistant version consisting of bare copper wires (according to DIN EN 60228).

Overall shield

Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical

Element shield

Flexible braiding made of tinned copper wires.

Outer jacket

Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).

Outer jacket colour

Pastel orange (comparable to RAL 2003)

Nominal voltage

600/1,000V (according to DIN VDE 0298-3)

Test voltage

4000V (according to DIN EN 50395)

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 50363-4-1), Class 2

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00863/20

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 2 The outer jacket material of this series complies with CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 10989 and 2570, 1000 V, 80 °C

UL verified

Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
