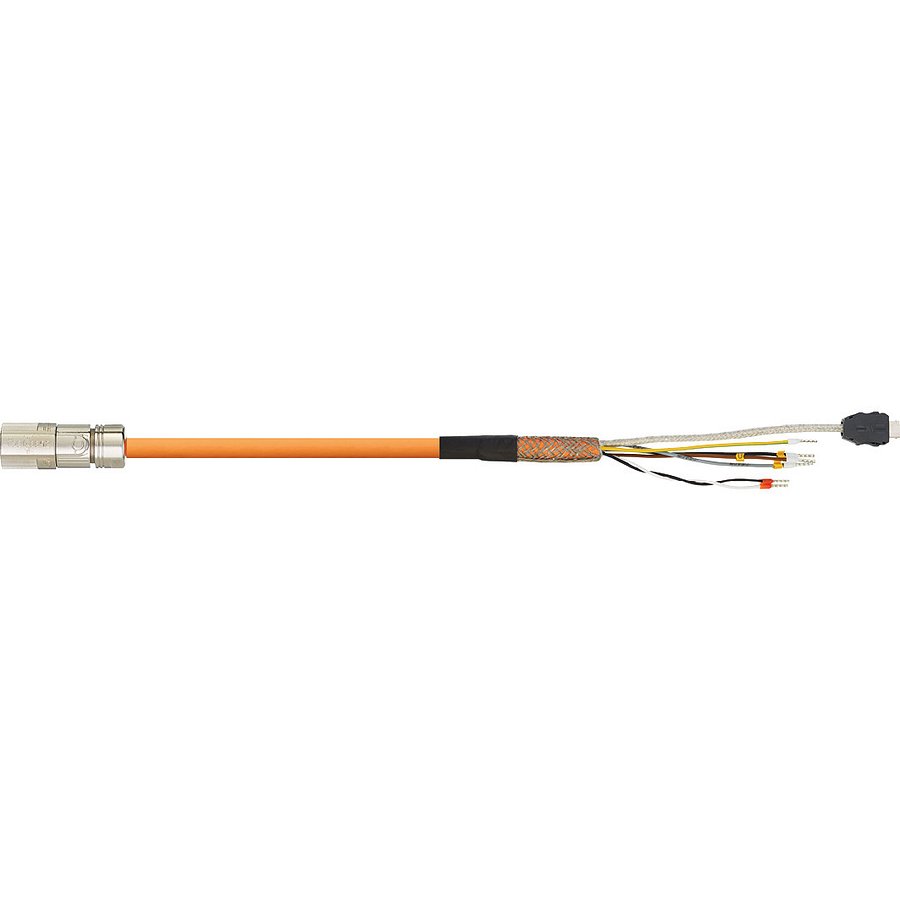

readycable® hybrid servo cable, suitable for Siemens 6FX_002-8QN08 base cable, PVC 11XD (MAT97515130)
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® hybrid servo cable, suitable for Siemens 6FX_002-8QN08 base cable, PVC 11XD (MAT97515130) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: M17 plug-in connector, socket, 10-pin; Connector B: val_280; Copper index kg/km: 99 kg/km; Shipping weight (kg or kg/m): 0.0995512; Outer diameter (d) max. mm: 11 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 6FX_002-8QN08
- Brand
- IGUS
- Category
- Tools
- Cable type
- Basic cable
- Connector A
- M17 plug-in connector, socket, 10-pin
- Connector B
- val_280
- Number of cores and conductor nominal cross-section
- (4G0.75+(2x0.5)C+(4xAWG26)C)C
- Copper index kg/km
- 99 kg/km
- Shipping weight (kg or kg/m)
- 0.0995512
- Outer diameter (d) max. mm
- 11 mm
- Weight per km
- 149 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 110 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 88 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 55 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 2 m/s
- a max. (acceleration)
- 50 m/s²
- travel length
- Travels up to 10 m
- torsion
- No Torsion
- Conductor
- Stranded conductor in a bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Overall shield
- Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical
- Element shield
- Flexible braiding made of tinned copper wires.
- Outer jacket
- Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).
- Outer jacket colour
- Pastel orange (comparable to RAL 2003)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-4-1), Class 2
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00863/20
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 2 The outer jacket material of this series complies with CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10989 and 2570, 1000 V, 80 °C
- UL verified
- Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8544.42
Cross References
- OEM-URL https://www.igus.com/product/MAT97515130
Product Documentation
More from igus
igus
readycable® power cable suitable for Siemens 6FX_002-5DS13, base cable PVC 7.5 x d (MAT9751517)
igus
readycable® power cable suitable for Siemens 6FX_002-5DS51, base cable PVC 7.5 x d (MAT9751523)
igus
readycable® servo cable suitable for Siemens 6FX_002-5DS54, base cable PVC 7.5 x d (MAT9751525)
igus
readycable® servo cable suitable for Siemens 6FX_002-5DS64, base cable PVC 7.5 x d (MAT9751527)
igus
readycable® power cable suitable for Siemens 6FX_002-5DG51, base cable PVC 7.5 x d (MAT9751538)
igus
readycable® power cable suitable for Siemens 6FX_002-5DG61, base cable PVC 7.5 x d (MAT9751540)
igus
readycable® servo cable suitable for Siemens 6FX_002-5DG13, base cable PVC 7.5 x d (MAT9751541)
igus

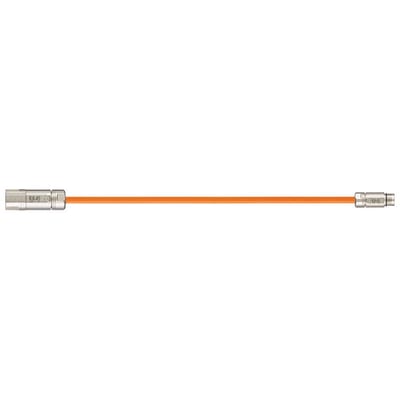

readycable® servo cable suitable for Siemens 6FX_002-5DQ58, extension cable, SpeedTec, PVC 10 x d (MAT9751554)
