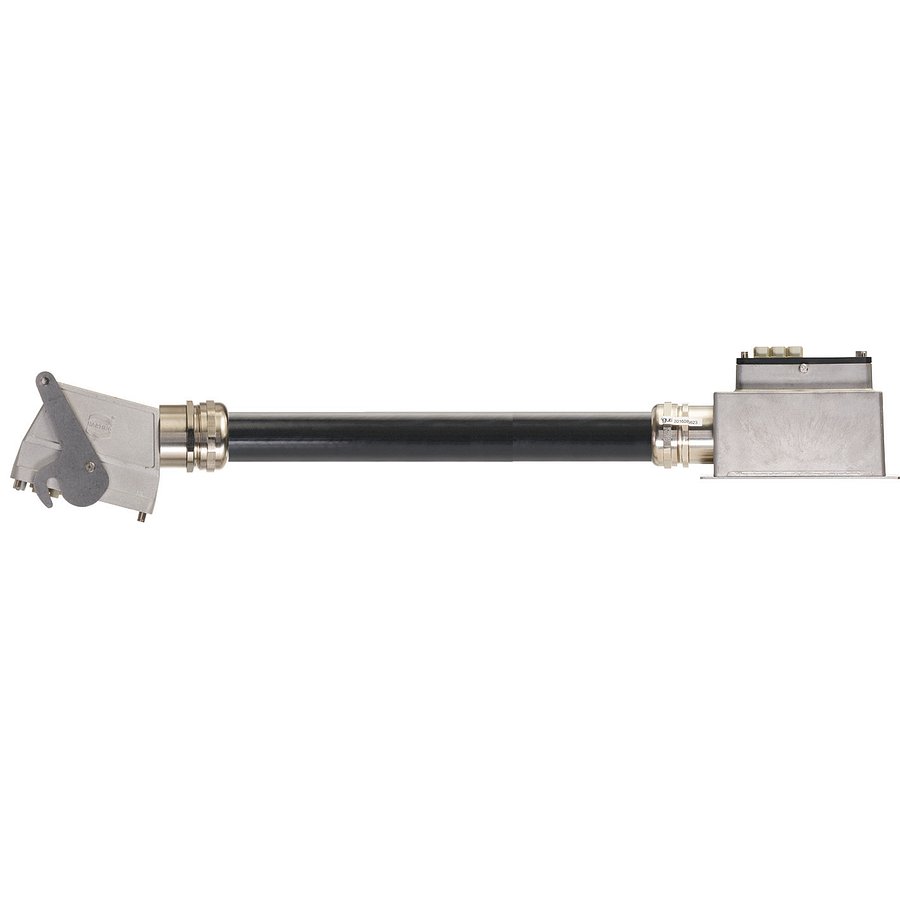

readycable® motor cable Kuka Fortec Titan angled on socket (MAT904105014)

readycable® motor cable Kuka Fortec Titan angled socket

Manufacturer part number (MPN)

MAT904105014

Brand

IGUS

Category

Tools

Manufacturer name

X30.2/X30.2.1

Number of cores and conductor nominal cross-section

(2x(3x1.5)C+3x(3x10)+1G10)C

Copper index kg/km

1340 kg/km

Core group 1 core structure

2x(3x1.5)C

Core group 1 colour code

Black cores with white numerals 10-15

Core group 2 core structure

3x(3x10)

Core group 2 colour code

Black cores with white numerals 1-9

Core group 3 core structure

1G10

Core group 3 colour code

Green-yellow core

Shipping weight (kg or kg/m)

2.314263

Outer diameter (d) max. mm

36 mm

Weight per km

2122 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

355 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

284 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

177.5 mm

Temperature e-chain®

-25°C up to +80°C

Temperature, flexible

-40°C to +80°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +80°C (according to DIN EN 50305)

v max. unsupported (speed)

3 m/s

v max. gliding (speed)

2 m/s

a max. (acceleration)

20 m/s²

torsion

No Torsion

Conductor

Finely stranded conductor consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality TPE mixture.

Inner jacket

TPE mixture adapted to suit the requirements in e-chains®.

Overall shield

Bend-resistant braiding made of tinned copper wires. Coverage approx. 50% linear, approx. 80% optical

Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).

Outer jacket colour

Jet black (comparable to RAL 9005)

Nominal voltage

600/1,000V (according to DIN VDE 0298-3)

Test voltage

4000V (according to DIN EN 50395)

UV resistance

High

Oil resistance

Oil-resistant (according to DIN EN 50363-10-2), Class 3

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

EAC

Certificate No. RU C-DE.ME77.B.00302/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

CE

According to 2014/35/EU

UL verified

Certificate no. B129699: "igus 36-month chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

Offshore

MUD-resistant according to NEK 606 - status 2018

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42

• OEM-URL https://www.igus.com/product/MAT904105014
