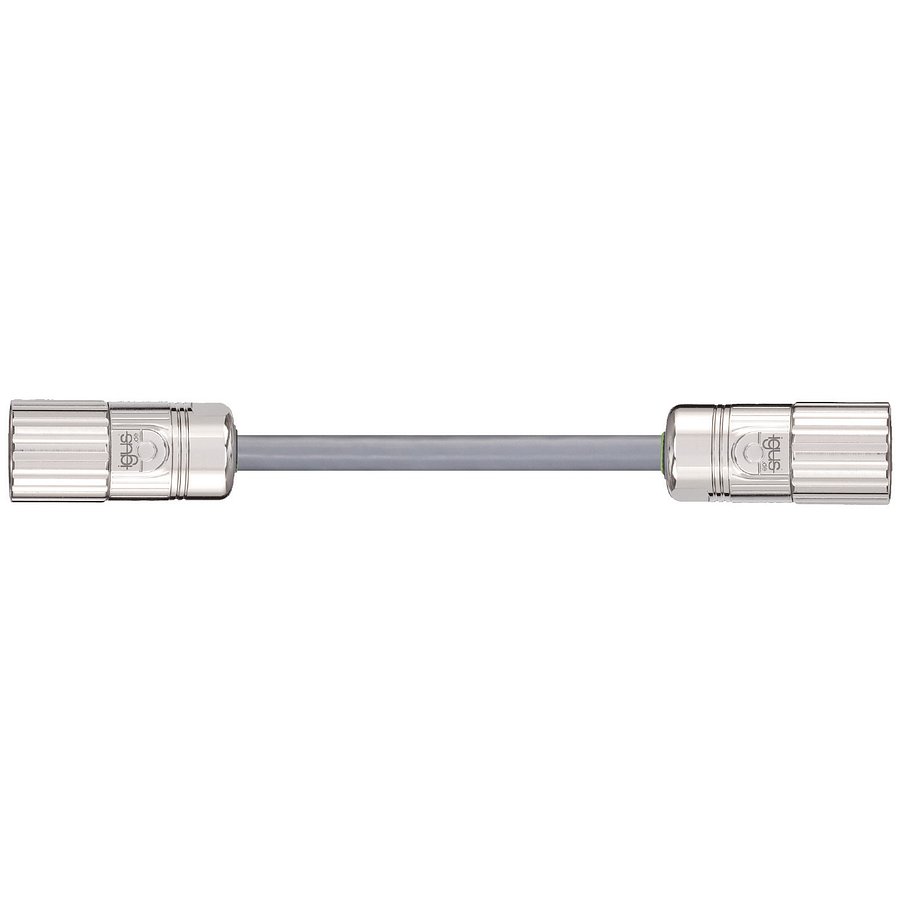

readycable® control cable Kuka Quantec individual axis 7TH axis

readycable® control cable Kuka Quantec single axis 7th axis

Manufacturer part number (MPN)

MAT904105009

Brand

IGUS

Category

Tools

Manufacturer name

Single axis control cable

Connector A

round connector, female, 12 poles

Connector B

round connector, male, 12 poles

Number of cores and conductor nominal cross-section

(4x(2x0.25)C)C

Copper index kg/km

78 kg/km

Stranding type

Twisted Pair/Pair shield

Shipping weight (kg or kg/m)

0.168

Outer diameter (d) max. mm

11 mm

Weight per km

153 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

110 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

88 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

55 mm

Temperature e-chain®

-25°C up to +80°C

Temperature, flexible

-40°C to +80°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +80°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

v max. gliding (speed)

5 m/s

a max. (acceleration)

80 m/s²

travel length

Unsupported travel distances and up to 100 m for gliding applications

torsion

No Torsion

Conductor

Very finely stranded special conductors of a particularly bend-resistant design, made of bare copper wires.

Core insulation

Mechanically high-quality TPE mixture.

Core stranding

Cores twisted in pairs with short pitch lengths, core pairs then wound with short pitch lengths.

Inner jacket

TPE mixture adapted to suit the requirements in e-chains®.

Overall shield

Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%

Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).

Outer jacket colour

Anthracite grey (comparable to RAL 7016)

Nominal voltage

300/300V (according to DIN VDE 0298-3)

Test voltage

1500V (according to DIN EN 50395)

UV resistance

High

Oil resistance

Oil-resistant (according to DIN EN 50363-10-2), Class 3

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

EAC

Certificate No. RU C-DE.ME77.B.00300/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 10493 and 20233, 300 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

CEI

According to CEI 20-35

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

DNV

Type approval certificate TAE00003X3

NFPA

According to NFPA 79-2018, chapter 12.9

Offshore

MUD-resistant according to NEK 606 - status 2018

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
