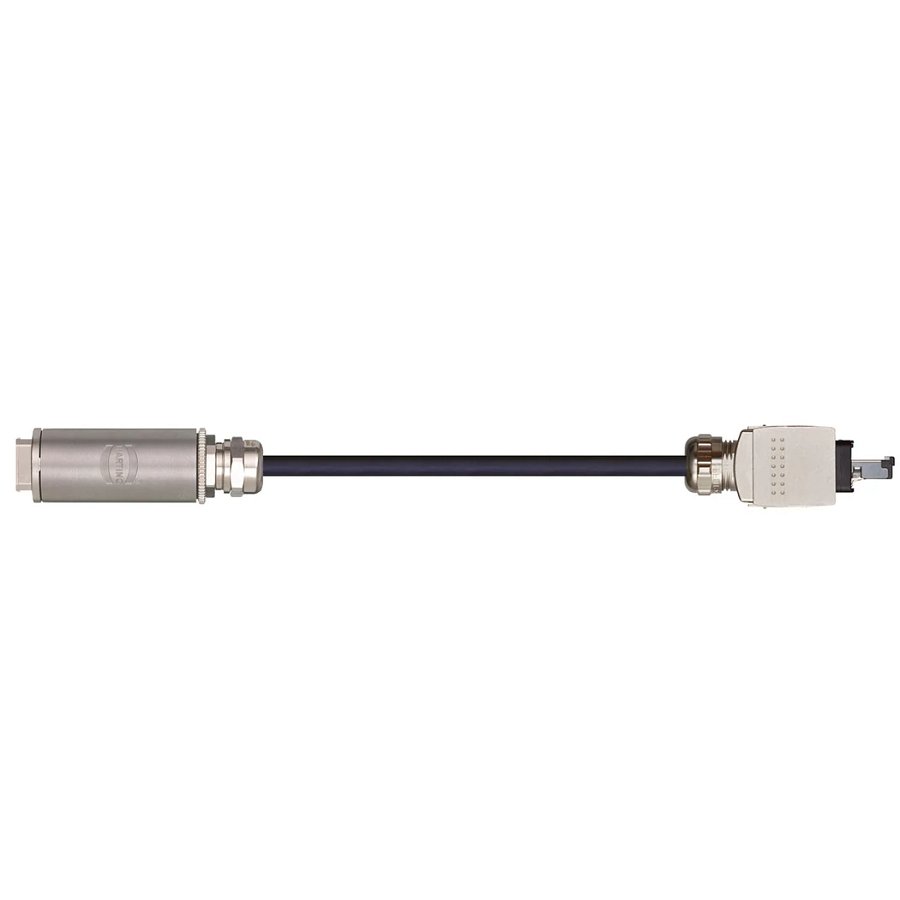

readycable® bus cable according to AIDA Profinet RJ-45, extension cable axis 1-6, male/male (MAT904152121)

readycable® bus cable according to AIDA specification, extension cable socket-pin, axis 1-6

Manufacturer part number (MPN)

MAT904152121

Brand

IGUS

Category

Tools

Connector A

AIDA Profinet - RJ-45 pin

Bus system

Profinet

Number of cores and conductor nominal cross-section

(4x0.34)C

Copper index kg/km

32 kg/km

Core group 1 core structure

(4x0.38)C

Core group 1 colour code

white, orange, blue, yellow (star-quad stranding)

Wave resistance approx.

100 Ω

Shipping weight (kg or kg/m)

0.13407

Outer diameter (d) max. mm

7 mm

Weight per km

64 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

70 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

56 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

35 mm

Temperature e-chain®

-25°C up to +70°C

Temperature, flexible

-40°C to +70°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +70°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

travel length

Robots and motions in 3D area, Class 1

v max., twisted (speed)

360 °/m

torsion

Torsion ±360°, with 1m cable length, Class 4

Conductor

Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).

Core insulation

According to bus specification.

Overall shield

Torsion-resistant, tinned braided copper shield. Cover approx. 80% optical

Outer jacket

Low-adhesion, halogen-free PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).

Outer jacket colour

Steel blue (comparable to RAL 5011)

Nominal voltage

50V

Test voltage

500V

UV resistance

High

Oil resistance

Oil-resistant (according to DIN EN 50363-10-2), Class 3

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00295/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 1598 and 20236, 30 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

Flame-retardant

According to IEC 60332-1-2, FT1

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
