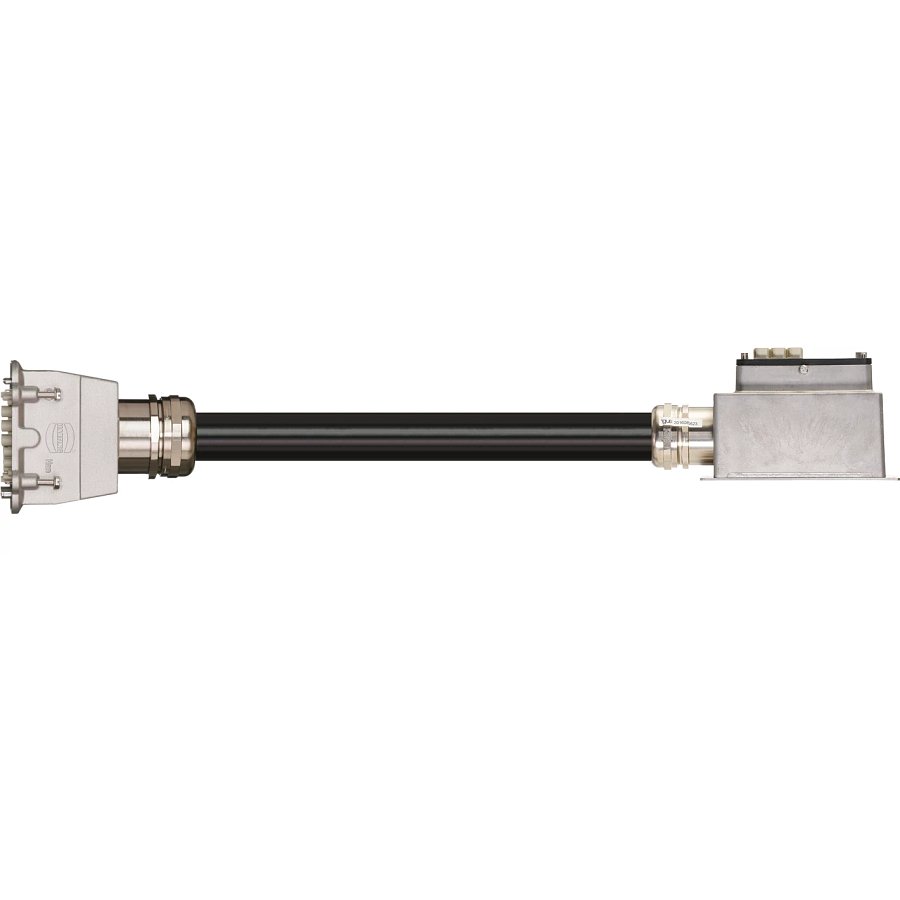

Adapter cable suitable for KUKA X30 Adapter QUANTEC2/QUANTEC1 Moving end AX7, 10XD, PUR

igus Adapter cable suitable for KUKA X30 Adapter QUANTEC2/QUANTEC1 Moving end AX7, 10XD, PUR (part number MAT904188450) is listed under Safety & Detection / Tools. Copper index kg/km: 1250 kg/km; Core group 1 core structure: 10x6; Core group 2 core structure: 10x2.5; Core group 3 core structure: 2x(6x1.0)C; Shipping weight (kg or kg/m): 0.587364; Outer diameter (d) max. mm: 35.5 mm.

Manufacturer part number (MPN)

MAT904188450

Brand

IGUS

Category

Tools

Number of cores and conductor nominal cross-section

(5x(2x6.0+2x2.5)+2x(6x1.0)C)C

Copper index kg/km

1250 kg/km

Core group 1 core structure

10x6

Core group 1 colour code

Black cores with white numbers 1-9, one green-yellow core

Core group 2 core structure

10x2.5

Core group 2 colour code

Black cores with white numbers 10-18, one green-yellow core

Core group 3 core structure

2x(6x1.0)C

Shipping weight (kg or kg/m)

0.587364

Outer diameter (d) max. mm

35.5 mm

Weight per km

2033 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

355 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

284 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

177.5 mm

Temperature e-chain®

-25°C up to +80°C

Temperature, flexible

-40°C to +80°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +80°C (according to DIN EN 50305)

v max. unsupported (speed)

3 m/s

v max. gliding (speed)

2 m/s

a max. (acceleration)

20 m/s²

torsion

No Torsion

Conductor

Finely stranded conductor consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality TPE mixture.

Inner jacket

TPE mixture adapted to suit the requirements in e-chains®.

Overall shield

Bend-resistant braiding made of tinned copper wires. Coverage approx. 50% linear, approx. 80% optical

Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).

Outer jacket colour

Jet black (comparable to RAL 9005)

Nominal voltage

600/1,000V (according to DIN VDE 0298-3)

Test voltage

4000V (according to DIN EN 50395)

UV resistance

High

Oil resistance

Oil-resistant (according to DIN EN 50363-10-2), Class 3

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

EAC

Certificate No. RU C-DE.ME77.B.00302/19

CE

According to 2014/35/EU

UL verified

Certificate no. B129699: "igus 36-month chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

Offshore

MUD-resistant according to NEK 606 - status 2018

• OEM-URL https://www.igus.com/product/MAT904188450
