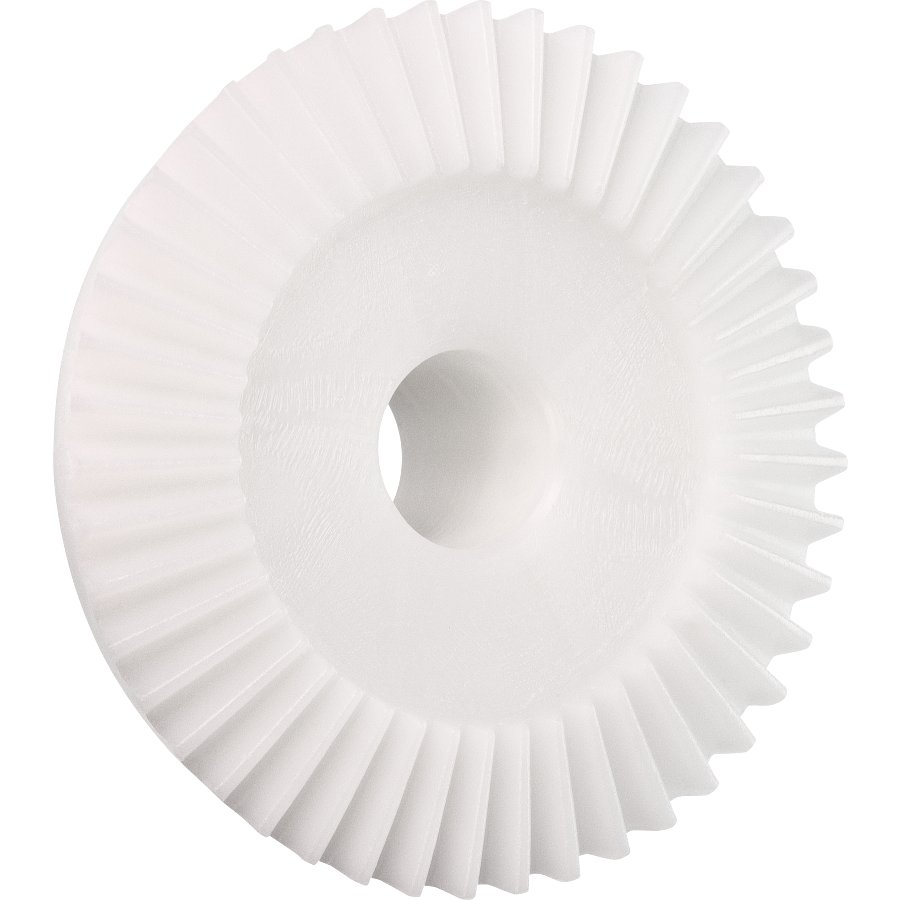

iguform S270 bevel gears - ratio 1:5
Pricing
Request a quote
We reply within 24 hours
Overview
igus iguform S270 bevel gears - ratio 1:5 (part number S270GM-BG-100-012-00-040-R-50) is listed under Safety & Detection / Tools. Module: 1; Material: iguform S270; Weight: 1.71 g; Colour: White; Shipping weight (kg or kg/m): 0.00171; Density: 1.41 g/cm³.
Technical Specifications
- Manufacturer part number (MPN)
- S270GM-BG-100-012-00-040-R-50
- Brand
- IGUS
- Category
- Tools
- Number of teeth
- 12
- Module
- 1
- Material
- iguform S270
- Weight
- 1.71 g
- Colour
- White
- Shipping weight (kg or kg/m)
- 0.00171
- Density
- 1.41 g/cm³
- Max. moisture absorption test method
- Test method ISO 62
- Ø d1 bore diameter
- 4 mm
- b3
- 10.1 mm
- b2
- 9.9 mm
- d4
- 12 mm
- b1
- 20.2 mm
- d5
- 13.7 mm
- Max. long-term application temperature
- 90 °C
- Max. short-term application temperature
- 100 °C
- Lower application temperature
- -40 °C
- Transmission
- 1:5
- Modulus of elasticity
- 2400 MPa
- Modulus of elasticity test method
- Test method DIN 53457
- Flexural strength (at 20°C/68°F)
- 65 MPa
- Flexural strength (at 20°C/68°F) test method
- Test method DIN 53452
Standards & Compliance
- HS Code
- 8483.40
Cross References
- OEM-URL https://www.igus.com/product/iguform_S270_GM_BG_1_5
Product Documentation
