Encoder cable (encoder) with M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description

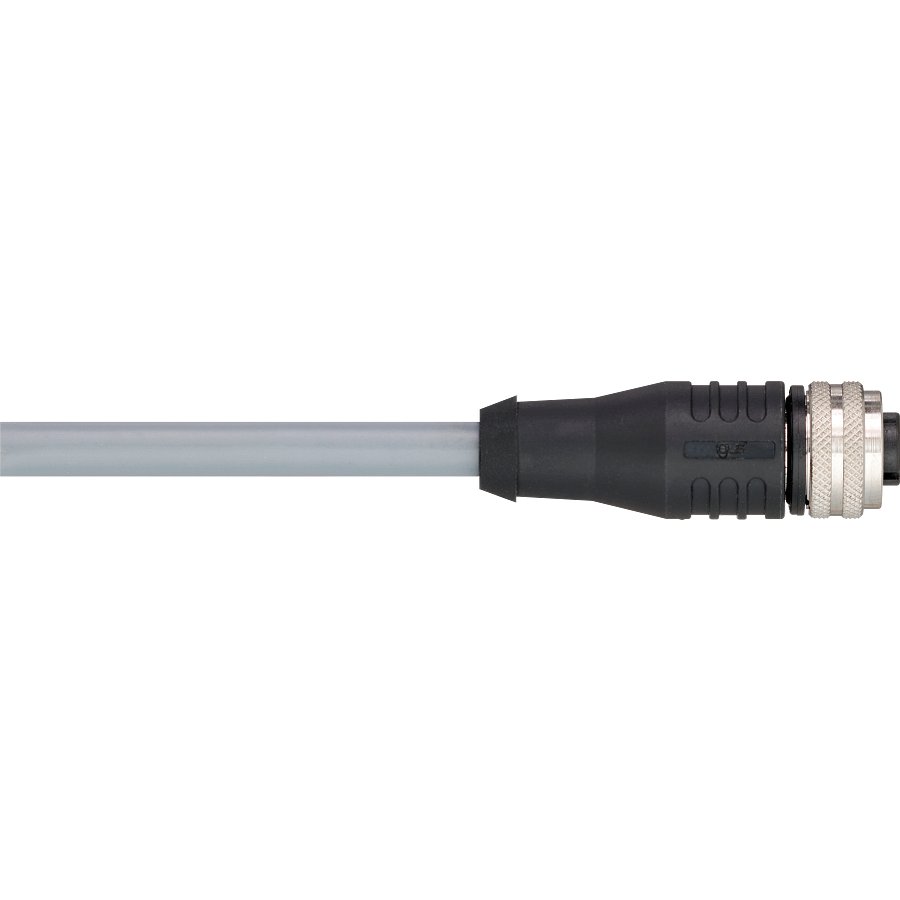

Encoder cable with M12 connector for fast setup of motor feedback systems.
Technical Specifications
- Manufacturer part number (MPN)
- DLE904121455-3
- Brand
- IGUS
- Category
- Tools
- Rated voltage
- 60 V
- Connector design
- straight
- Number of cores and conductor nominal cross-section
- (8x0.25)C
- Copper index kg/km
- 39 kg/km
- Core group 1 core structure
- (8 x 0.25)C
- Weight
- 204 g
- Shipping weight (kg or kg/m)
- 0.1941
- Outer diameter (d) max. mm
- 7 mm
- Weight per km
- 68 kg/km
- L1
- 3 m
- Min. bend radius, e-chain
- 70 mm
- Min. bend radius, flexible
- 56 mm
- Min. bend radius, fixed
- 35 mm
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- The individual cores are wound in layers with a short pitch length.
- Outer jacket colour
- Silver grey (comparable to RAL 7001)
- UL/CSA AWM
- Style 10493 and 2464, 300 V, 80 °C
