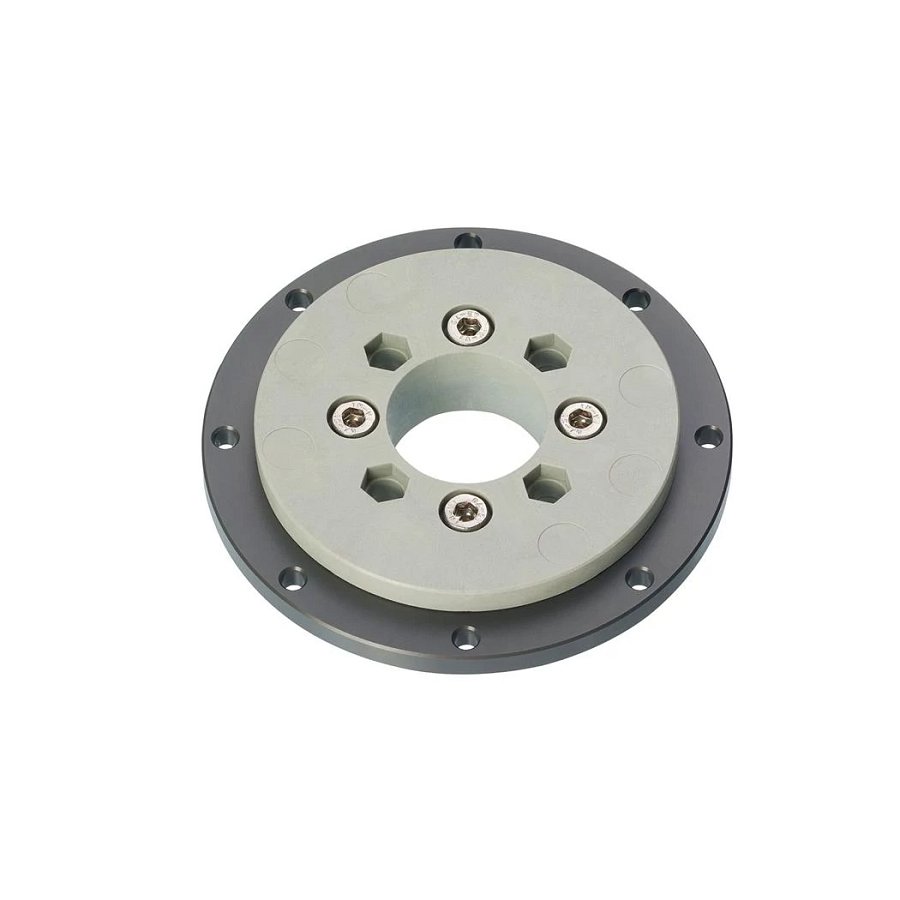

iglide® Slewing Ring, PRT-02, Anodized Aluminium Outer Ring, iglide® J4 Sliding Element
Pricing
Request a quote
We reply within 24 hours
Overview
igus iglide® Slewing Ring, PRT-02, Anodized Aluminium Outer Ring, iglide® J4 Sliding Element (part number PRT-02-20-AL) is listed under Safety & Detection / Tools. Weight: 207.11 g; Housing material: aluminium; Inner ring material: iglidur® J4; Shipping weight (kg or kg/m): 0.20711; Outer diameter (d) max. mm: 70 mm; D tolerance: according to DIN ISO 2768 mK.
Technical Specifications
- Manufacturer part number (MPN)
- PRT-02-20-AL
- Brand
- IGUS
- Category
- Tools
- Weight
- 207.11 g
- Housing material
- aluminium
- Inner ring material
- iglidur® J4
- Shipping weight (kg or kg/m)
- 0.20711
- Outer diameter (d) max. mm
- 70 mm
- D tolerance
- according to DIN ISO 2768 mK
- Ø d2
- 60 mm
- d2 tolerance
- ±0,20 mm
- T1
- 6 x 60 °
- S2
- 4,5
- K1
- DIN 6912 M5
- K2
- ISO 4035 M5
- Max. long-term application temperature
- 60 °C
- Lower application temperature
- -50 °C
- Axial load, static
- 13000 N
- Axial load, dynamic
- 4000 N
- Radial load, static
- 2000 N
- Radial load, dynamic
- 500 N
- Rotating speed dry running [rpm]
- 250
- max. permissible tilt moment
- 60 Nm
Standards & Compliance
- HS Code
- 8483.30
Cross References
- OEM-URL https://www.igus.com/product/iglidur_PRT_02_AL_J4
Product Documentation
