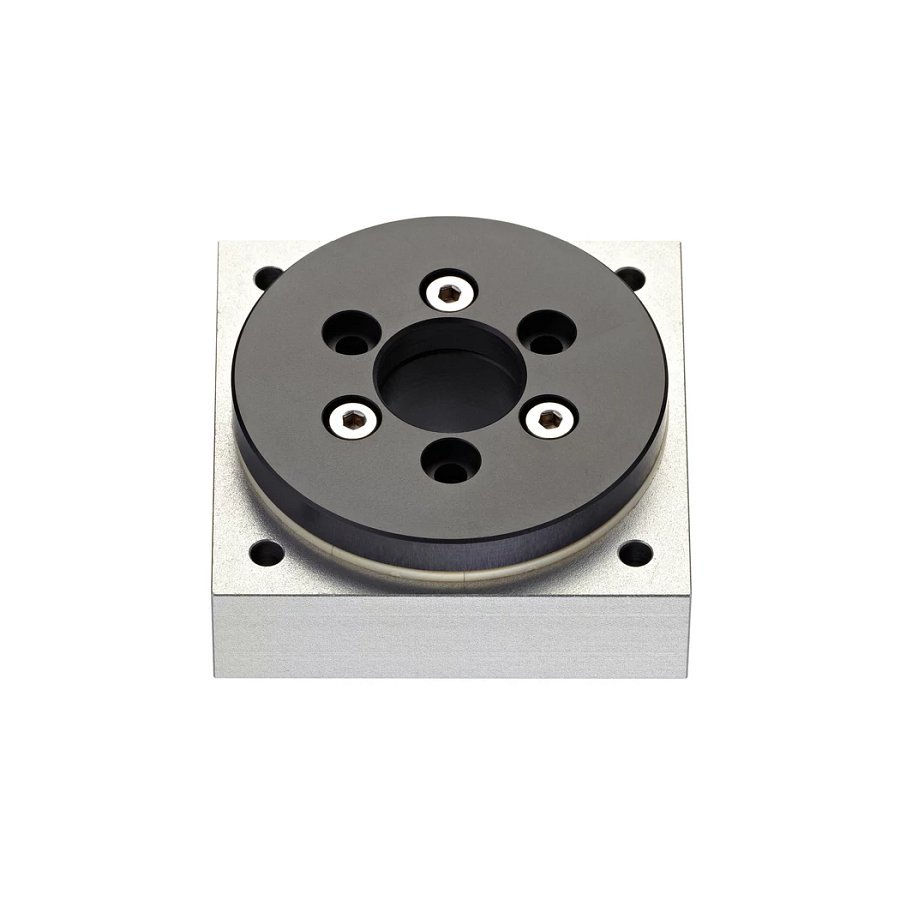

iglide® PRT-01 Slewing Ring, Square Flange, iglide® J Sliding Elements
Pricing
Request a quote
We reply within 24 hours
Overview
igus iglide® PRT-01 Slewing Ring, Square Flange, iglide® J Sliding Elements (part number PRT-01-20-SQ) is listed under Safety & Detection / Tools. Weight: 210.58 g; Housing material: aluminium; Shipping weight (kg or kg/m): 0.21058; D tolerance: according to DIN ISO 2768 mK; d1: 31 mm; Ø d2: 60 mm.
Technical Specifications
- Manufacturer part number (MPN)
- PRT-01-20-SQ
- Brand
- IGUS
- Category
- Tools
- Weight
- 210.58 g
- Housing material
- aluminium
- Shipping weight (kg or kg/m)
- 0.21058
- D tolerance
- according to DIN ISO 2768 mK
- d1
- 31 mm
- Ø d2
- 60 mm
- T1
- 6 x 60 °
- S1
- M4
- S2
- 4,5
- K1
- DIN 7984 M4
- h1
- 18 mm
- h2
- 2 mm
- Max. long-term application temperature
- 90 °C
- Lower application temperature
- -50 °C
- Axial load, static
- 15000 N
- Axial load, dynamic
- 4000 N
- Radial load, static
- 2300 N
- Radial load, dynamic
- 600 N
- Rotating speed dry running [rpm]
- 300
- max. permissible tilt moment
- 100 Nm
Standards & Compliance
- HS Code
- 8483.30
Cross References
- OEM-URL https://www.igus.com/product/iglidur_PRT_01_SQ
Product Documentation
