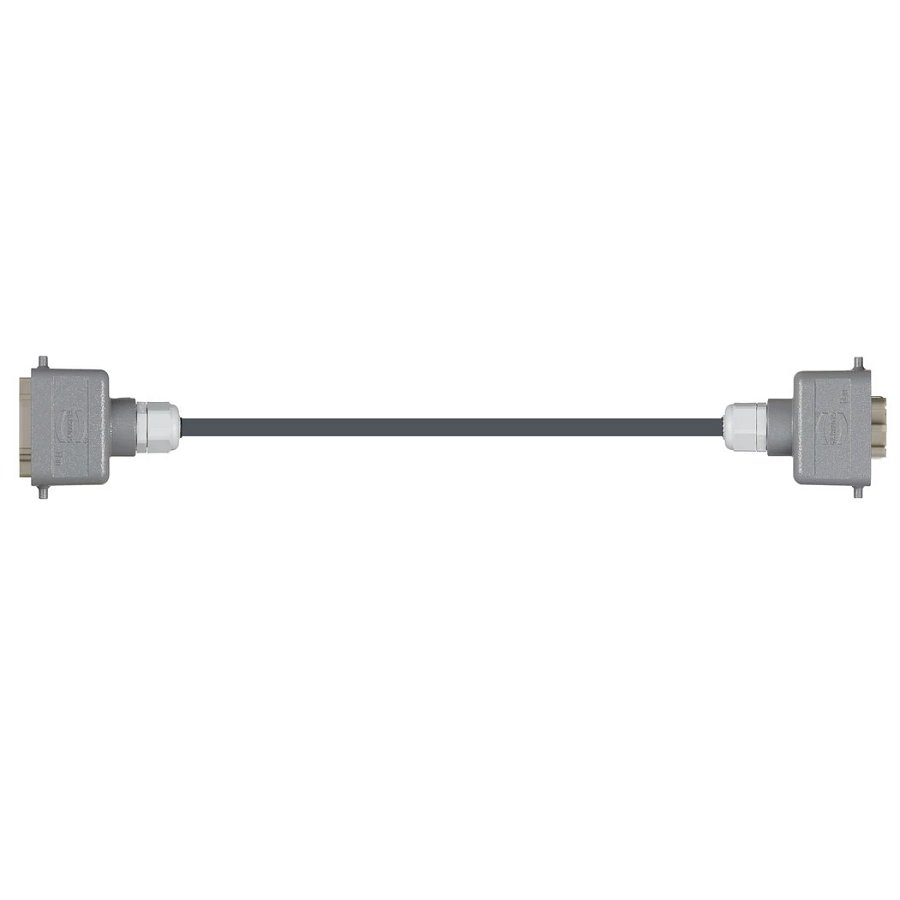

Han 6B Connector housing (pin) to Han 6B Connector housing (socket), Single locking lever on both sides, straight, PUR 10 x d
Pricing
Request a quote
We reply within 24 hours
Product Description
Han 6B connector housing (pin) on Han 6B connector housing (socket), single locking lever, straight at both ends, PUR 10xd
Technical Specifications
- Manufacturer part number (MPN)
- MAT90489367
- Brand
- IGUS
- Category
- Tools
- Connector A
- Socket M20 insert 6+PE straight Cable entry
- Connector B
- Connector M20 insert 6+PE straight Cable entry
- Insert 1 HARTING Part No.
- 09330062702
- Insert 2 HARTING Part No.
- 09330062602
- Housing 1 HARTING Part No.
- 19300061440
- Housing series
- Han 6B
- Connector design
- straight cable entry on both sides
- Locking type
- single locking lever
- Number of cores and conductor nominal cross-section
- 5G1.0+(2x1.0)C
- Copper index kg/km
- 82 kg/km
- Core group 1 core structure
- 5G1
- Core group 1 colour code
- white with black numerals 1-4, one green-yellow core
- Core group 2 core structure
- (2x1.0)C
- Core group 2 colour code
- white with black numerals 5-6
- Outer diameter (d) max. mm
- 10 mm
- Weight per km
- 136 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 100 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 80 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 50 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- travel length
- Robots and motions in 3D area, Class 1
- v max., twisted (speed)
- 180 °/m
- torsion
- Torsion ±180°, with 1m cable length, Class 3
- Conductor
- Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Element shield
- Extremely torsion-resistant, tinned copper shield. Cover approx. 85% optical
- Outer jacket
- Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Steel blue (comparable to RAL 5011)
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
