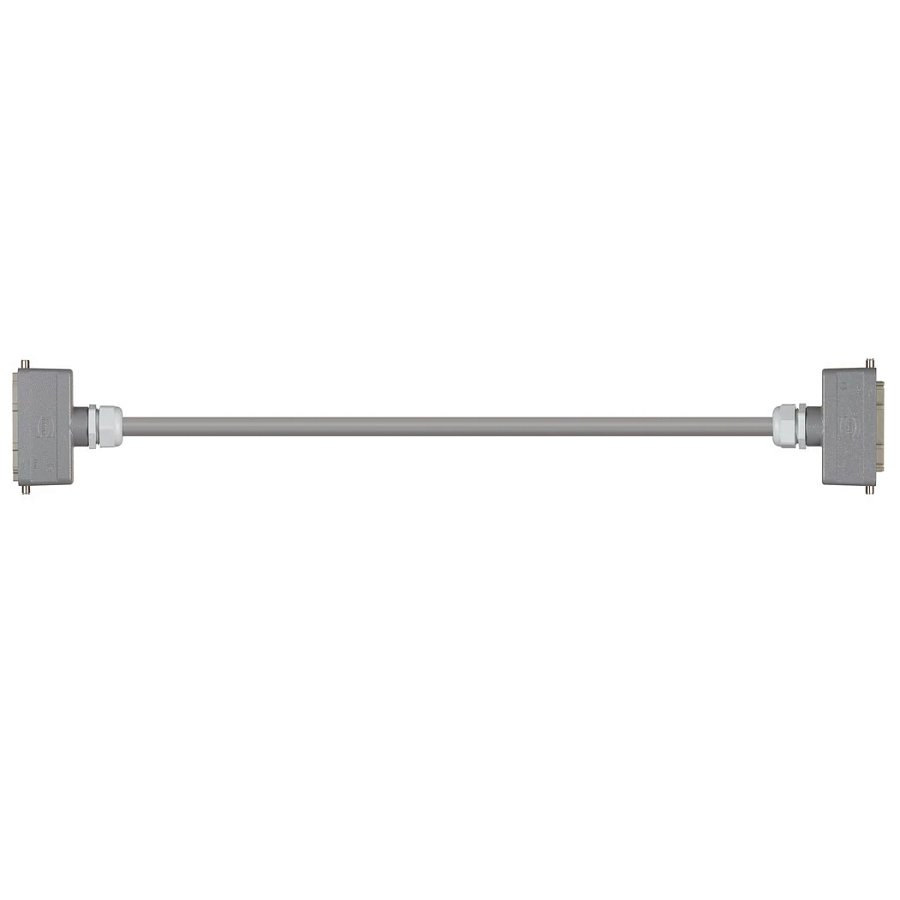

Han 24B Connector housing (pin) to Han 24B Connector housing (socket), Single locking lever on both sides, straight, PVC 7.5 x d
Pricing
Request a quote
We reply within 24 hours
Product Description
Han 24B connector housing (pin) on Han 24B connector housing (socket), single locking lever, straight at both ends, PVC 7.5xd
Technical Specifications
- Manufacturer part number (MPN)
- MAT90489441
- Brand
- IGUS
- Category
- Tools
- Connector A
- Socket M32 insert 24+PE straight Cable entry
- Connector B
- Connector M32 insert 24+PE straight Cable entry
- Insert 1 HARTING Part No.
- 09330242702
- Insert 2 HARTING Part No.
- 09330242602
- Housing 1 HARTING Part No.
- 19300241442
- Connector design
- straight cable entry on both sides
- Locking type
- single locking lever
- Number of cores and conductor nominal cross-section
- 25G1.5
- Copper index kg/km
- 371 kg/km
- Shipping weight (kg or kg/m)
- 0.720728
- Outer diameter (d) max. mm
- 19.5 mm
- Weight per km
- 563 kg/km
- Min. bend radius, e-chain (factor)
- 7.5 x d
- Min. bend radius, e-chain
- 146.25 mm
- Min. bend radius, flexible (factor)
- 6 x d
- Min. bend radius, flexible
- 117 mm
- Min. bend radius, fixed (factor)
- 4 x d
- Min. bend radius, fixed
- 78 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- v max. gliding (speed)
- 2 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Travels up to 50 m
- v max., twisted (speed)
- 90 °/m
- torsion
- Torsion ±90°, with 1m cable length, Class 2
- Conductor
- Finely stranded conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound in bundles are then wound around a high tensile strength centre element, all with optimised short pitch lengths and directions. Especially low-torsion structure.
- Outer jacket
- Low-adhesion PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).
- Outer jacket colour
- Silver grey (comparable to RAL 7001)
- CFRIP®
- Strip cables faster: a tear strip is moulded into the outer jacket
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- Oil resistance
- No oil resistance
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1, material/cable tested by IPA according to DIN EN ISO standard 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10493 and 20200, 300 V, 60 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8538.90
Cross References
- OEM-URL https://www.igus.com/product/MAT90489441
Product Documentation
More from igus
igus
Han 24B Connector housing (pin) to Han 24B Connector housing (socket), Single locking lever on both sides, straight, iguPUR
MAT90489443
igus
Han 24B Connector housing (pin) to Han 24B Connector housing (socket), Single locking lever on both sides, straight, PUR 6.8 x d
MAT90489444
igus
Han 24B Connector housing (pin) to Han 24B Connector housing (socket), Single locking lever on both sides, straight, TPE, halogen free
MAT90489445
igus
Han 24B Connector housing (pin) to Han 24B Connector housing (socket), Single locking lever on both sides, straight, TPE, Flame_retardant
MAT90489446
igus
Han 24B Connector housing (pin) to Han 24B Connector housing (socket), Single locking lever on both sides, straight, PUR 10 x d
MAT90489447
igus
Han 24B Connector housing (pin) to Han 24B Connector housing (socket), Single locking lever on both sides, angled, PVC 12.5 x d
MAT90489448
igus
Han 24B Connector housing (pin) to Han 24B Connector housing (socket), Single locking lever on both sides, angled, PVC 7.5 x d
MAT90489449
igus

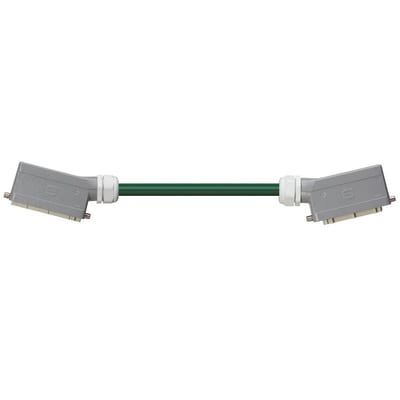

Han 24B Connector housing (pin) to Han 24B Connector housing (socket), Single locking lever on both sides, angled, PVC 6.8 x d
