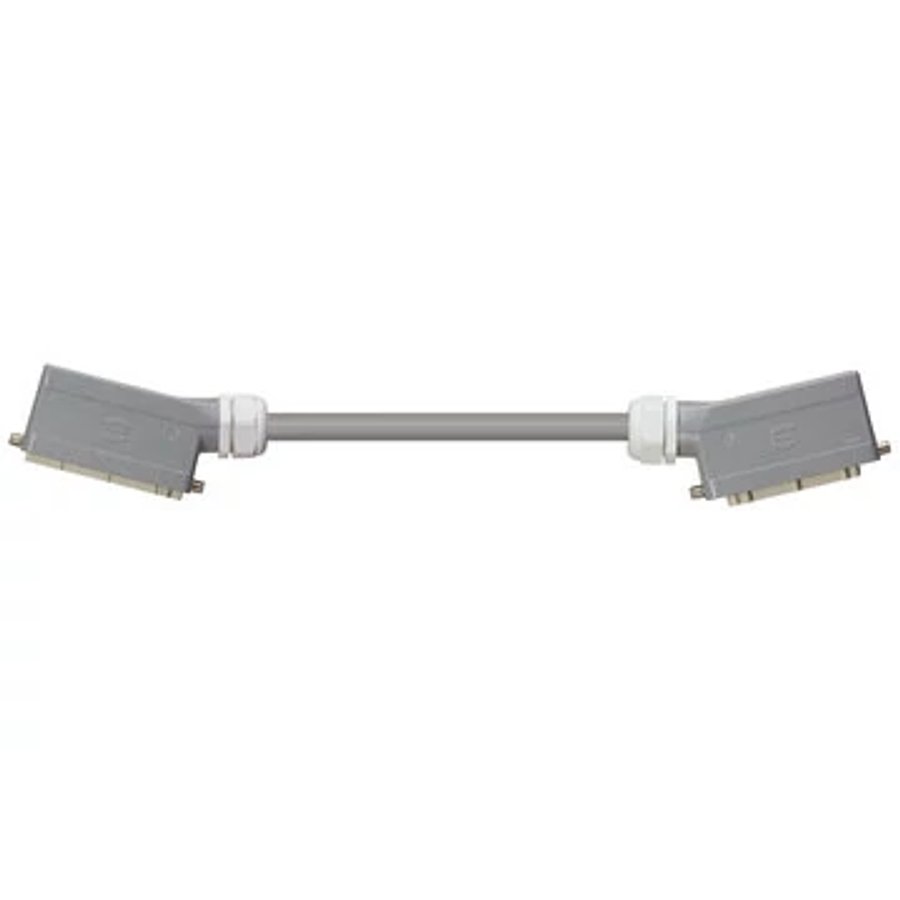

Han 24B Connector housing (pin) to Han 24B Connector housing (socket), Single locking lever on both sides, angled, PVC 12.5 x d
Pricing
Request a quote
We reply within 24 hours
Product Description
Han 24B connector housing (pin) on Han 24B connector housing (socket), single locking lever, angled at both ends, PVC 12.5xd
Technical Specifications
- Manufacturer part number (MPN)
- MAT90489448
- Brand
- IGUS
- Category
- Tools
- Connector A
- Socket M32 insert 24+PE lateral Cable entry
- Connector B
- Connector M32 insert 24+PE lateral Cable entry
- Insert 1 HARTING Part No.
- 09330242702
- Insert 2 HARTING Part No.
- 09330242602
- Housing 1 HARTING Part No.
- 19300241542
- Housing series
- Han 24B
- Connector design
- cable entry angled on both sides
- Locking type
- single locking lever
- Number of cores and conductor nominal cross-section
- 25G1.5
- Copper index kg/km
- 387 kg/km
- Shipping weight (kg or kg/m)
- 0.749128
- Outer diameter (d) max. mm
- 17.5 mm
- Weight per km
- 514 kg/km
- Min. bend radius, e-chain (factor)
- 12.5 x d
- Min. bend radius, e-chain
- 218.75 mm
- Min. bend radius, flexible (factor)
- 10 x d
- Min. bend radius, flexible
- 175 mm
- Min. bend radius, fixed (factor)
- 7 x d
- Min. bend radius, fixed
- 122.5 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Unsupported up to 10 m
- torsion
- No Torsion
- Conductor
- Conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound with an optimised pitch length.
- Outer jacket
- Low-adhesion PVC mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- Oil resistance
- No oil resistance
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10493 and 2464, 300 V, 80 °C
- UL verified
- Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8538.90
Cross References
