Han 16B Connector housing (pin) to Han 16B Connector housing (socket), Single locking lever on both sides, angled, iguPUR
Pricing
Request a quote
We reply within 24 hours
Product Description
Han 16B connector housing (pin) on Han 16B connector housing (socket), single locking lever, angled at both ends, iguPUR
Technical Specifications
- Manufacturer part number (MPN)
- MAT90489419
- Brand
- IGUS
- Category
- Tools
- Connector A
- Socket M32 insert 16+PE lateral Cable entry
- Connector B
- Connector M32 insert 16+PE lateral Cable entry
- Insert 1 HARTING Part No.
- 09330162702
- Insert 2 HARTING Part No.
- 09330162602
- Housing 1 HARTING Part No.
- 19300161542
- Housing series
- Han 16B
- Connector design
- cable entry angled on both sides
- Locking type
- single locking lever
- Number of cores and conductor nominal cross-section
- 18G1.5
- Copper index kg/km
- 279 kg/km
- Outer diameter (d) max. mm
- 14.5 mm
- Weight per km
- 362 kg/km
- Min. bend radius, e-chain (factor)
- 12.5 x d
- Min. bend radius, e-chain
- 181.25 mm
- Min. bend radius, flexible (factor)
- 10 x d
- Min. bend radius, flexible
- 145 mm
- Min. bend radius, fixed (factor)
- 7 x d
- Min. bend radius, fixed
- 101.5 mm
- Temperature e-chain®
- -20°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Unsupported up to 10 m
- torsion
- No Torsion
- Conductor
- Conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound with an optimised pitch length.
- Outer jacket
- Low-adhesion iguPUR mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 11323 and 20940, 600 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8538.90
Cross References
- OEM-URL https://www.igus.com/product/MAT90489419
Product Documentation
More from igus
igus
Han 16B Connector housing (pin) to Han 16B Connector housing (socket), Single locking lever on both sides, angled, TPE, halogen free
MAT90489421
igus
Han 16B Connector housing (pin) to Han 16B Connector housing (socket), Single locking lever on both sides, angled, TPE, flame retardant
MAT90489422
igus
Han 16B Connector housing (pin) to Han 16B Connector housing (socket), Single locking lever on both sides, angled, PUR 10 x d
MAT90489423
igus
Han 16B Connector housing (pin) to Han 16B Connector housing (socket), Double locking lever on both sides, straight, PVC 12.5 x d
MAT90489424
igus
Han 16B Connector housing (pin) to Han 16B Connector housing (socket), Double locking lever on both sides, straight, PVC 7.5 x d
MAT90489425
igus
Han 16B Connector housing (pin) to Han 16B Connector housing (socket), Double locking lever on both sides, straight, PVC 6.8 x d
MAT90489426
igus
Han 16B Connector housing (pin) to Han 16B Connector housing (socket), Double locking lever on both sides, straight, iguPUR
MAT90489427
igus

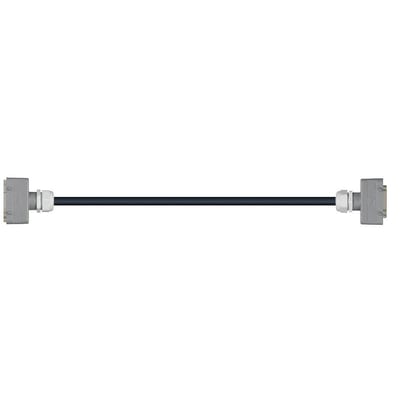

Han 16B Connector housing (pin) to Han 16B Connector housing (socket), Double locking lever on both sides, straight, PUR 6.8 x d
