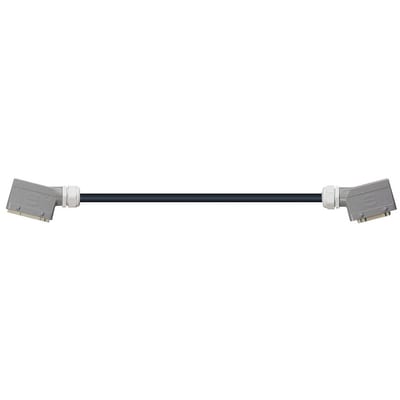

Han 16B Connector housing (pin) to Han 16B Connector housing (socket), Single locking lever on both sides, angled, PUR 10 x d

Han 16B connector housing (pin) on Han 16B connector housing (socket), single locking lever, angled at both ends, PUR 10xd

Manufacturer part number (MPN)

MAT90489423

Brand

IGUS

Category

Tools

Connector A

Socket M32 insert 16+PE lateral Cable entry

Connector B

Connector M32 insert 16+PE lateral Cable entry

Insert 1 HARTING Part No.

09330162702

Insert 2 HARTING Part No.

09330162602

Housing 1 HARTING Part No.

19300161542

Housing series

Han 16B

Connector design

cable entry angled on both sides

Locking type

single locking lever

Number of cores and conductor nominal cross-section

16G1.0+(2x1.0)C

Copper index kg/km

194 kg/km

Core group 1 core structure

16G1

Core group 1 colour code

white with black numerals 1-4, 7-17 one green-yellow core

Core group 2 core structure

(2x1.0)C

Core group 2 colour code

white with black numerals 5-6

Outer diameter (d) max. mm

15.5 mm

Weight per km

307 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

155 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

124 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

77.5 mm

Temperature e-chain®

-25°C up to +80°C

Temperature, flexible

-40°C to +80°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +80°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

travel length

Unsupported up to 10 m

v max., twisted (speed)

180 °/m

torsion

Torsion ±180°, with 1m cable length, Class 3

Conductor

Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality TPE mixture.

Element shield

Extremely torsion-resistant, tinned copper shield. Cover approx. 85% optical

Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).

Outer jacket colour

Steel blue (comparable to RAL 5011)

Nominal voltage

300/500V (according to DIN VDE 0298-3)

Test voltage

2000V (according to DIN EN 50395)

UV resistance

High

Oil resistance

Oil-resistant (according to DIN EN 50363-10-2), Class 3

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

EAC

Certificate No. RU C-DE.ME77.B.00300/19

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8538.90
