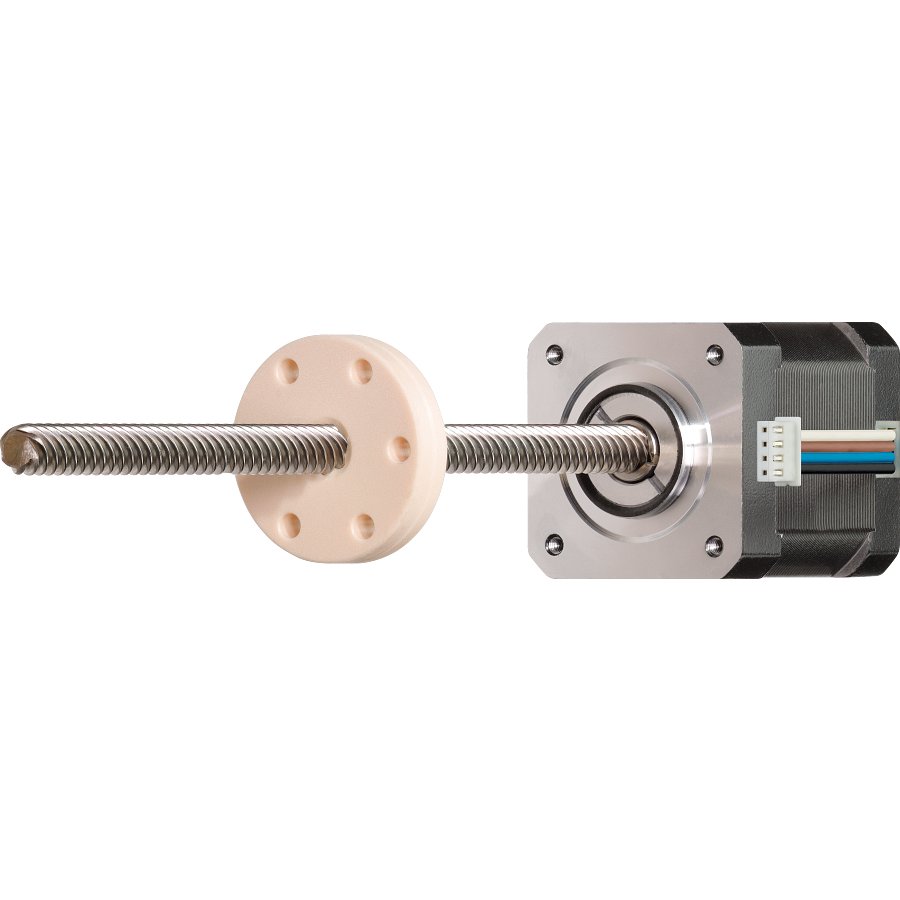

drylin® E stepper motor linear actuator, stranded wires with JST connector, NEMA17
Pricing
Request a quote
We reply within 24 hours
Product Description
Integrated NEMA17 linear actuator with stepper motor for direct-drive positioning.
Technical Specifications
- Manufacturer part number (MPN)
- DLE-LA-0003
- Brand
- IGUS
- Category
- Tools
- Weight
- 335.92 g
- Shipping weight (kg or kg/m)
- 0.33592
- Protection class (IP)
- IP40
- Motors installation size
- flange dimension 42 mm / NEMA17
- B1
- 42.3 mm
- B2
- 31 mm
- L2
- 49 mm
- Usable thread length
- 150 mm
- Linear movement per step
- 0.08 mm
- Max. axial force
- 100 N
- Thread size
- DST 8X15
- Max. feed rate
- 250 mm/s
- Rated torque
- 0.022 Nm
Standards & Compliance
- HS Code
- 8483.30
Cross References
- OEM-URL https://www.igus.com/product/DLE-LA-0003
More from igus
igus
drylin control unit for commissioning of motorised drives
DLE-CU-9
igus
drylin® E stepper motor linear actuator, stranded wires with JST connector and encoder, NEMA17
DLE-LA-0004
igus
7TH axis | EPSON Cap + control cabinet integration
DLE-EPSON-0001
igus
drylin® E stepper motor linear actuator, stranded wires with JST connector, NEMA23
DLE-LA-0005
igus
drylin® E stepper motor linear actuator, stranded wires with JST connector and encoder, NEMA23
DLE-LA-0006
igus

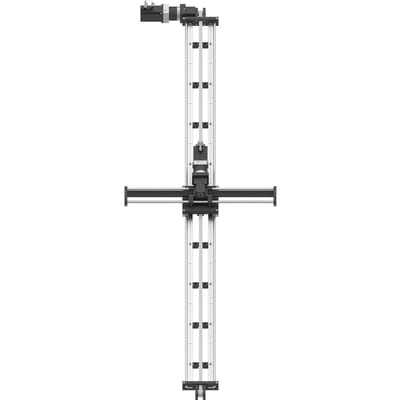

YZ gantry | up to 1 m/s | working area 1500 x 750 mm
DLE-LG-0002-ED
igus

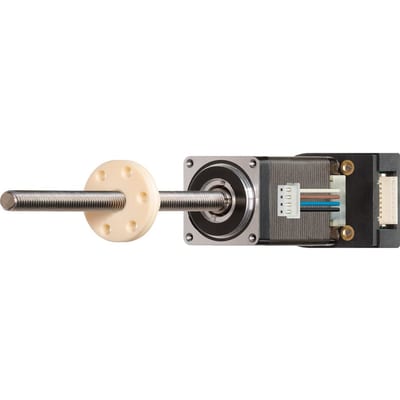

drylin® E stepper motor linear actuator, stranded wires with JST connector and encoder, NEMA11
DLE-LA-0002
igus

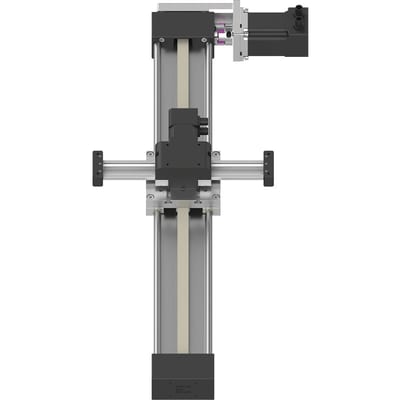

XY Actuator (Single Rail) | Workspace 500 x 150 mm
