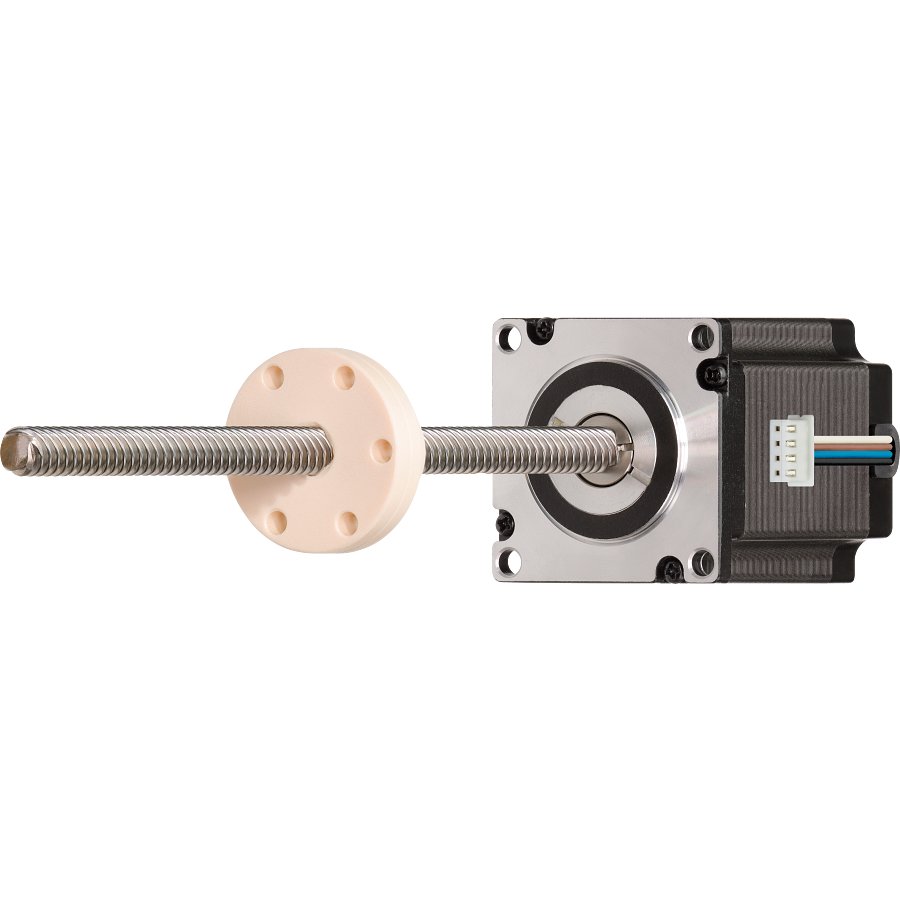

drylin® E stepper motor linear actuator, stranded wires with JST connector, NEMA23
Pricing
Request a quote
We reply within 24 hours
Product Description
NEMA23 stepper linear actuator with JST connector for efficient linear positioning.
Technical Specifications
- Manufacturer part number (MPN)
- DLE-LA-0005
- Brand
- IGUS
- Category
- Tools
- Weight
- 1441.57 g
- Shipping weight (kg or kg/m)
- 1.44157
- Protection class (IP)
- IP40
- Motors installation size
- flange dimension 56 mm / NEMA23
- B1
- 56.4 mm
- B2
- 47.14 mm
- L2
- 75 mm
- Usable thread length
- 200 mm
- Linear movement per step
- 0.06 mm
- Max. axial force
- 500 N
- Thread size
- DST 10X12
- Max. feed rate
- 150 mm/s
- Rated torque
- 0.068 Nm
Standards & Compliance
- HS Code
- 8483.30
Cross References
- OEM-URL https://www.igus.com/product/DLE-LA-0005
