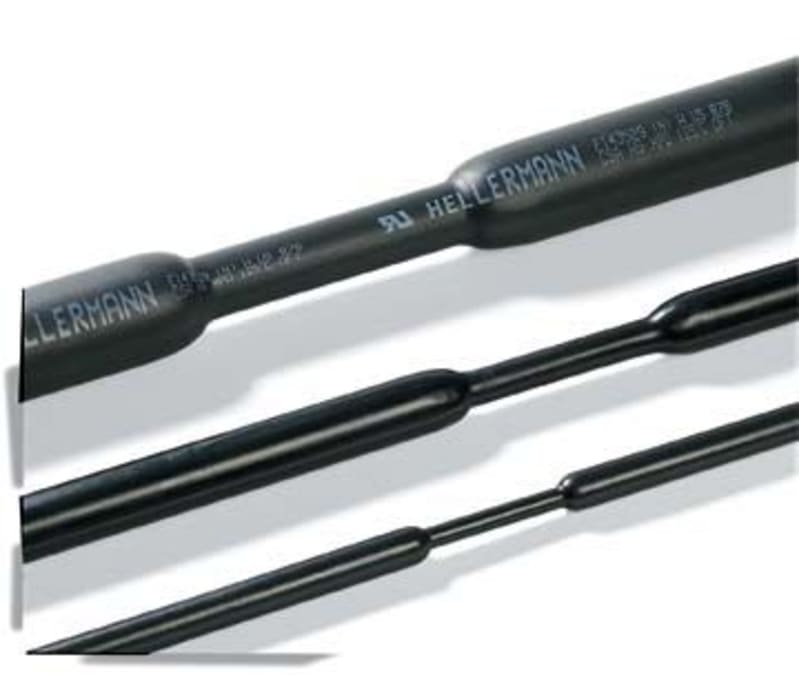

Heat Shrink Tubing HA47 105/30 mm Black 1 m

Hellermann 321-20900 HA47 105/30mm 1m Black With ADHESIVE.

Manufacturer part number (MPN)

321-20900 EAN / GTIN: 4031026250458 Sales unit: pcs Package quantity: 3 pcs OEM part description: HA47-105/30-PO-X-BK Type: HA47-105/30 Product family: HA47 - thick wall adhesive lined Serration: Thick-Wall material: Polyolefin, cross-linked (PO-X) Colour: Black (BK) Length: 1.0 m Wall thickness: 4.2 mm Supplied diameter (min.): 105.0 mm Recovered diameter (max.): 30.0 mm Operating temperature: -55 °C to +110 °C Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes Hazardous goods: No Weight per unit: 0.534 kg Packed in: pcs. Inner pack type: box Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour At Low Temperature: not cracking Behaviour at Heat Shock: not cracking, not fluid, not dripping Behaviour at low Temperature test method: ASTM D2671 Elongation At Heat Aging: 300 % Heat Aging Test: 168h/150°C Heat Aging test method: ASTM D2671 Heat Shock Test: 4h/225°C minimum Tensile Strength At Heat Aging: 12 MPa Printable: No Shrink Ratio: up to 4:1 Model: Thick-walled Wall thickness after shrinking: 4.3 mm Inner diameter before heat-shrink: 105 mm Inner diameter after heat-shrink: 30 mm Transparent: No With inner glue: Yes Shrink rate: 4:1 UL approval: No

HS Code

3917.32

• EAN 4031026250458
• SAP 1200415740
• Code 82458989
