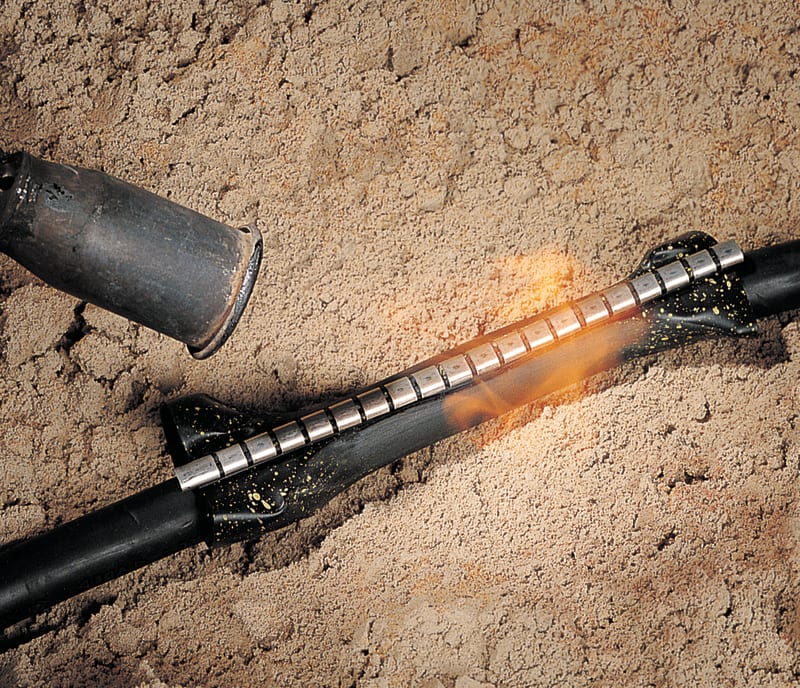

Heat Shrink Wraparound Sleeve 185-55 Black with Adhesive Lining

Hellermann 450-20050 WAC 188/55 reparasjonshylser RMS 188-55. Black with Adhesive.

Manufacturer part number (MPN)

450-20050

EAN / GTIN

7070604000273

Sales unit

pcs

OEM part description

RMS 185-55-PO-X-BK

Type

RMS 185-55

Product family

RMS

Serration

Shrink Cast

Material

Polyolefin, chemically cross-linked (PO-X)

Colour

Black (BK)

Length

1000.0 mm

Wall thickness

2.74 mm

Supplied diameter (min.)

185.0 mm

Recovered diameter (max.)

55.0 mm

Pre-printed

Yes

Operating temperature

-40 °C to +120 °C

UV stabilised

Yes

Halogen-free

Yes

RoHS compliant

Yes

ELV compliant (Article 4-2)

Yes

UL recognised (US and Canada)

No

Hazardous goods

No

Weight per unit

1.17 kg

Package content

1000.0 mm

Inner pack quantity

1

Inner pack type

bag

Country of origin

IN

Customs tariff number

85472000

ETIM 9.0 class

EC000219

Cable ⌀ max

160 mm

Cable ⌀ min

65 mm

Shrink Ratio

up to 4.5:1

With inner glue (Yes/No)

Yes

For Object Outside Diameter

81-159 mm

Longitudinal Change After Shrinkage

-10% max.

Adhesive

Hot melt adhesive

Dielectric Strength

30 kV/mm

Model

Shrink cast

UV resistant

Yes

Strengthened construction

No

Inner diameter before heat-shrink

185 mm

Inner diameter after heat-shrink

55 mm

For cable outer diameter

65–160 mm

HS Code

3921.90

• EAN 7070604000273
• SAP 1000025130
• Code 8499442
