Hellermann

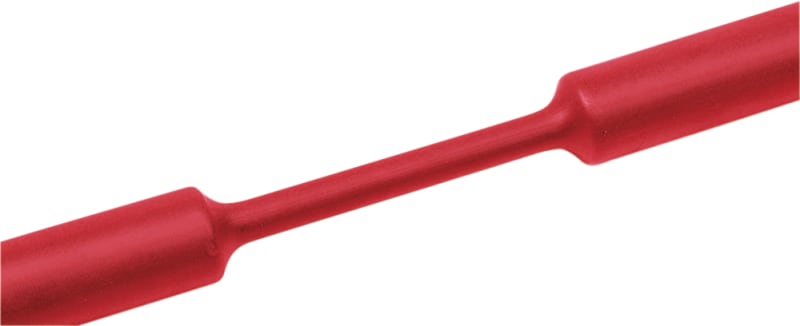

Heat Shrink Tubing TFN21 50.8/25.4 mm RED30M
Part number309-61047EAN / GTIN4031026537115HS code3917.32
Cables & Wiring
Heat Shrink
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hellermann 309-61047 Thin-walled 2:1-shrink 50.8/25.4mm Red.
Technical Specifications
- Manufacturer part number (MPN)
- 309-61047
- EAN / GTIN
- 4031026537115
- Sales unit
- m
- Package quantity
- 30 m
- OEM part description
- TFN21 50.8/25.4-PO-X-RD
- Type
- TFN21 50.8/25.4
- Product family
- TFN21
- Serration
- Thin-Wall
- Material
- Polyolefin, cross-linked (PO-X)
- Colour
- Red (RD)
- Length
- 30.0 m
- Wall thickness
- 1.10 mm
- Supplied diameter (min.)
- 50.8 mm
- Recovered diameter (max.)
- 25.4 mm
- Operating temperature
- -55 °C to +135 °C
- Flammability rating
- UL 224 VW-1
- Halogen-free
- No
- RoHS compliant
- Yes
- ELV compliant (Article 4-2)
- Yes
- UL recognised (US and Canada)
- Yes
- Standards
- ANSI/UL 224
- Hazardous goods
- No
- Weight per unit
- 0.114 kg
- Packed in
- reel
- Inner pack quantity
- 30
- Inner pack type
- reel
- Country of origin
- CN
- Customs tariff number
- 39173200
- ETIM 9.0 class
- EC000217
- UNSPSC code
- 39121723
- Behaviour At Low Temperature
- not cracking
- Behaviour at Heat Shock
- not cracking, not breaking, not fluid
- Behaviour at low Temperature test method
- UL 224
- Elongation At Heat Aging
- 700 %
- Heat Aging Test
- 168h/175°C
- Heat Aging test method
- UL 224
- Model
- Thin-walled
- Wall thickness after shrinking
- 1.1 mm
- Inner diameter before heat-shrink
- 50.8 mm
- Inner diameter after heat-shrink
- 25.4 mm
- Transparent
- No
- Printable
- Yes
- With inner glue
- No
- Shrink rate
- 2:1
- UL approval
- Yes
Standards & Compliance
- HS Code
- 3917.32
Cross References
- EAN 4031026537115
- SAP 1000726719
- Code 8457233
Product Documentation
Document preview: HellermannTyton 309-61047 — Technical Data Sheet (OEM)
