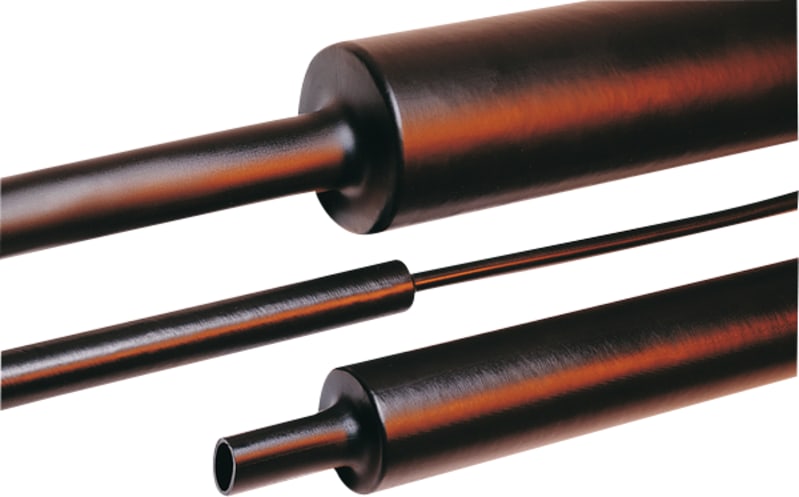

HU47 45.0/12.0 mm 1 m Black without Adhesive Lining

Hellermann 321-10450 Heat-shrink tubing 3:1 - 1 m lengder HU47-45/12.

Manufacturer part number (MPN)

321-10450 EAN / GTIN: 4031026240329 Sales unit: pcs Package quantity: 10 pcs OEM part description: HU47-45/12-PO-X-BK Type: HU47-45/12 Product family: HU47 - thick wall unlined Serration: Thick-Wall material: Polyolefin, cross-linked (PO-X) Colour: Black (BK) Length: 1.0 m Wall thickness: 4.0 mm Supplied diameter (min.): 45.0 mm Recovered diameter (max.): 12.0 mm Operating temperature: -55 °C to +110 °C Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes Hazardous goods: No Weight per unit: 0.208 kg Packed in: pcs. Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour At Low Temperature: not cracking Behaviour at Heat Shock: not cracking, not fluid, not dripping Behaviour at low Temperature test method: ASTM D2671 Elongation At Heat Aging: 300 % Heat Aging Test: 168h/150°C Heat Aging test method: ASTM D2671 Heat Shock Test: 4h/225°C minimum Tensile Strength At Heat Aging: 12 MPa Printable: No Shrink Ratio: up to 4:1 With inner glue (Yes/No): No Model: Thick-walled Wall thickness after shrinking: 4 mm Inner diameter before heat-shrink: 45 mm Inner diameter after heat-shrink: 12 mm Transparent: No Shrink rate: 4:1 UL approval: No

HS Code

8547.20

• EAN 4031026240329
• SAP 1000006637
• Code 853695
