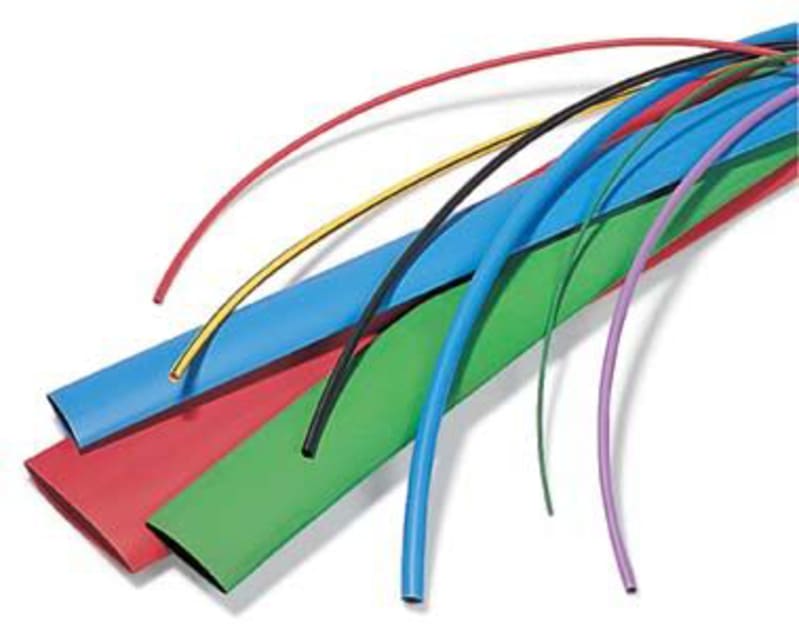

Heat Shrink Tubing TA30 24/8 1.2 m SV with Adhesive Lining
Pricing
Request a quote
We reply within 24 hours
Product Description
Hellermann 317-32400 Heat-shrink sleeve with adhesive - 1.2 m lengder TA30 24/8.
Technical Specifications
- Manufacturer part number (MPN)
- 317-32400
- EAN / GTIN
- 4031026224770
- Sales unit
- pcs
- Package quantity
- 15 pcs
- OEM part description
- TA30 24/8-PO-X-BK
- Type
- TA30 24/8
- Product family
- TA30 thin wall, 3:1 shrink ratio
- Serration
- Thin-Wall
- Material
- Polyolefin, cross-linked (PO-X)
- Colour
- Black (BK)
- Length
- 1.2 m
- Wall thickness
- 2.50 mm
- Supplied diameter (min.)
- 24.0 mm
- Recovered diameter (max.)
- 8.0 mm
- Operating temperature
- -55 °C to +110 °C, (outer wall only)
- Flammability rating
- ASTM D2671 B
- Halogen-free
- No
- RoHS compliant
- Yes
- Weight per unit
- 0.116 kg
- Packed in
- pcs.
- Inner pack quantity
- 15
- Inner pack type
- bag
- Country of origin
- DE
- Customs tariff number
- 39173290
- ETIM 9.0 class
- EC000217
- UNSPSC code
- 39121723
- Behaviour At Low Temperature
- not cracking
- Behaviour at Heat Shock
- not cracking, not dripping, not fluid
- Heat Aging Test
- 168h/175°C
- Heat Aging test method
- SAE-AS23053
- Heat Shock Test
- 4h/225°C
- Heat shock test test method
- SAE-AS23053
- Printable
- No
- Shrink Ratio
- 3:1
- With inner glue (Yes/No)
- Yes
- For Object Outside Diameter
- 11.2-20.8 mm
- Model
- Thin-walled
- Wall thickness after shrinking
- 2.5 mm
- Inner diameter before heat-shrink
- 24 mm
- Inner diameter after heat-shrink
- 8 mm
- Transparent
- No
- Shrink rate
- 3:1
- UL approval
- No
Standards & Compliance
- HS Code
- 3917.32
Cross References
- EAN 4031026224770
- SAP 1000000013
- Code 814950
Product Documentation
