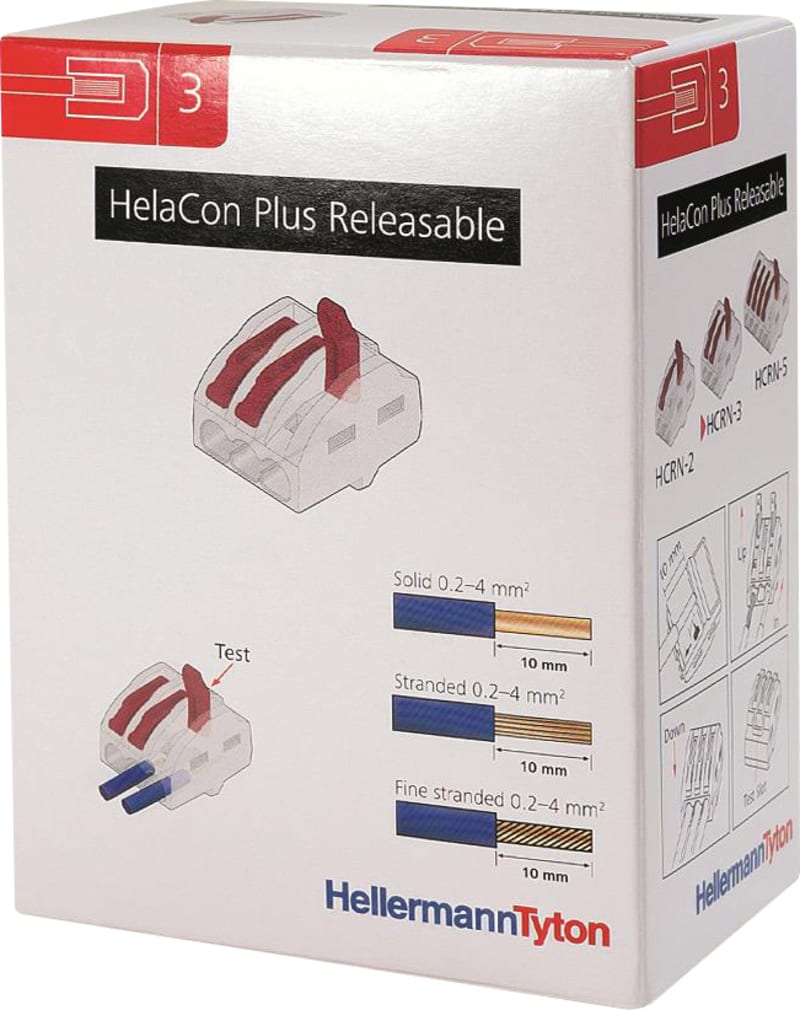

HellermannTyton HelaCon Plus Releasable 3-Way Push-in Connector, Transparent

HellermannTyton 148-90063 (HCRN-3-Blister) is a releasable three-conductor push-in wire connector from the HelaCon Plus family. The transparent polycarbonate housing carries an operating lever for each of the three ports, enabling conductors from 0.2 to 4 mm² (solid, stranded and flexible) to be inserted and removed without a tool. Rated 32 A at 450 V with a 10 mm strip length and rated for -30 to +85 °C, UL 94 V0. Supplied in blister packs of eight.

Manufacturer part number (MPN)

148-90063

EAN / GTIN

4031026657905

Sales unit

pcs

Package quantity

8 pcs

OEM part description

HCRN-3-Blister-PC-CL

Type

HCRN-3-Blister

Product family

HelaCon Plus Releasable

Material

Polycarbonate (PC)

Colour

Transparent (CL)

Length

17.0 mm

Width

20.5 mm

Height

14.0 mm

Operating temperature

-30 °C to +85 °C

Flammability rating

UL 94 V0

Halogen-free

Yes

RoHS compliant

Yes

ELV compliant (Article 4-2)

Yes

Standards

UL 486C

Hazardous goods

No

Weight per unit

0.0019 kg

Packed in

box

Inner pack quantity

8

Inner pack type

pack

Country of origin

CN

Customs tariff number

85369010

ETIM 9.0 class

EC000446

UNSPSC code

39131707

Max Current

32 A

Max Voltage

450 V

Number of Conductors

3

Suitable for flexible core (Yes/No)

Yes

Suitable for multi wire core (Yes/No)

Yes

Suitable for solid core (Yes/No)

Yes

Stripping Length

10 mm

Wire Range (VDE)

0.2 to 4.0 mm² all types of wire

UL File link

Link

Nominal current

32 A

Nominal voltage

450 V

Number of clamp positions

3

Suitable for solid conductors

Yes

Conductor cross section solid (solid, stranded)

0.2–4 mm²

Nominal cross section

0.2–4 mm²

Suitable for multi-wire conductors

Yes

Suitable for flexible conductors

Yes

Transparent

Yes

With operation lever

Yes

Type of locking/unlocking

Lever

HS Code

8536.90
