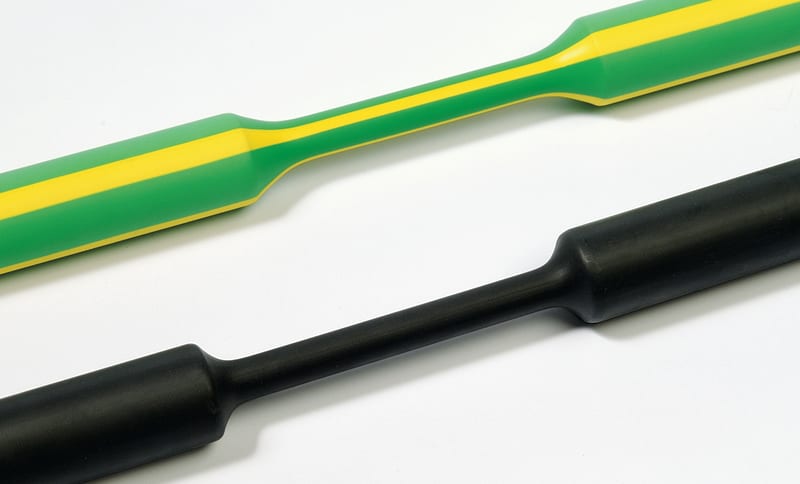

Heat Shrink Tubing 12.0/4.0 GG 10 x 1

Hellermann 319-01207 Heat-shrink tubing up to 3:1 1 m lengder TREDUX-12/4-Yellow/Green.

Manufacturer part number (MPN)

319-01207 EAN / GTIN: 4031026227726 Sales unit: pcs Package quantity: 10 pcs OEM part description: TREDUX-12/4-PO-X-GNYE Type: TREDUX-12/4 Product family: TREDUX - thin wall Serration: Thin-Wall material: Polyolefin, cross-linked (PO-X) Colour: Green-Yellow (GNYE) Length: 1.0 m Wall thickness: 0.80 mm Supplied diameter (min.): 12.0 mm Recovered diameter (max.): 4.0 mm Operating temperature: -55 °C to +135 °C Flammability rating: UL 224 VW-1 RoHS compliant: Yes ELV compliant (Article 4-2): Yes UL recognised (US and Canada): Yes Standards: ANSI/UL 224, C22.2 no. 198.1-06 Hazardous goods: No Weight per unit: 0.01754 kg Packed in: pcs. Inner pack quantity: 10 Inner pack type: carton Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour at Heat Shock: not fluid, not dripping, not cracking Behaviour at low Temperature test method: UL 224 Elongation At Heat Aging: 400 % Heat Aging Test: 168h/175°C Heat Shock Test: 4h/250°C Heat shock test test method: UL 224 minimum Tensile Strength At Heat Aging: 11 MPa Model: Thin-walled Halogen free: No Wall thickness after shrinking: 0.85 mm Inner diameter before heat-shrink: 12 mm Inner diameter after heat-shrink: 4 mm Transparent: No Printable: Yes With inner glue: No Shrink rate: 3:1 UL approval: Yes

HS Code

3917.32

• EAN 4031026227726
• SAP 1000047515
• Code 8530311
