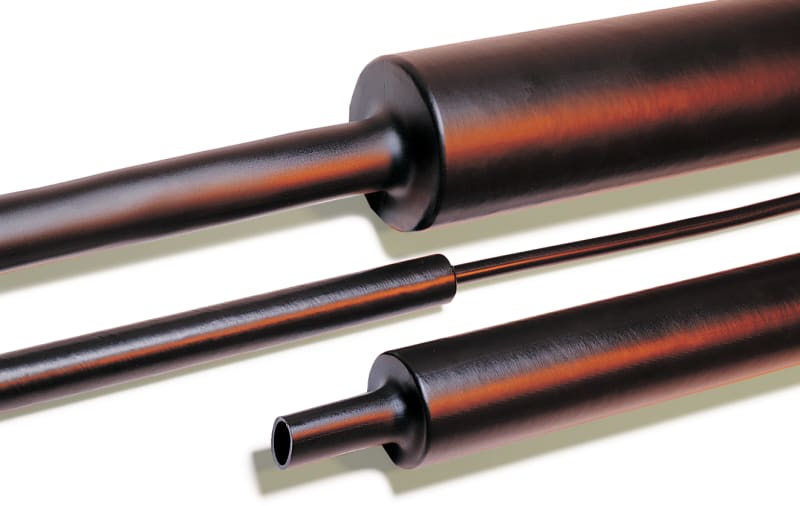

Heat Shrink Tubing MA47 50/16 mm Black 1 m

MA47 medium-thick-walled heat-shrink tubing with adhesive lining and a 4:1 shrink ratio, resistant to solvents, acids, and alkaline fluids.

Manufacturer part number (MPN)

323-20500 EAN / GTIN: 4031026240268 Sales unit: pcs OEM part description: MA47-50/16-PO-X-BK Type: MA47-50/16 Product family: MA47 - medium wall adhesive lined Serration: Medium-Wall material: Polyolefin, cross-linked (PO-X) Colour: Black (BK) Length: 1.0 m Wall thickness: 2.7 mm Supplied diameter (min.): 55.0 mm Recovered diameter (max.): 16.0 mm Operating temperature: -55 °C to +110 °C Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes Hazardous goods: No Weight per unit: 0.221 kg Package content: 8 pcs. Packed in: pcs. Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour At Low Temperature: not cracking Behaviour at Heat Shock: not cracking, not fluid, not dripping Behaviour at low Temperature test method: ASTM D2671 Elongation At Heat Aging: 300 % Heat Aging Test: 168h/150°C Heat Aging test method: ASTM D2671 Heat Shock Test: 4h/225°C minimum Tensile Strength At Heat Aging: 12 MPa Printable: No Shrink Ratio: up to 4:1 With inner glue (Yes/No): Yes Model: Medium-walled Wall thickness after shrinking: 2.7 mm Inner diameter before heat-shrink: 50 mm Inner diameter after heat-shrink: 16 mm Transparent: No Shrink rate: 4:1 UL approval: No

HS Code

3917.32

• EAN 4031026240268
• SAP 1000722140
• Code 8450063
