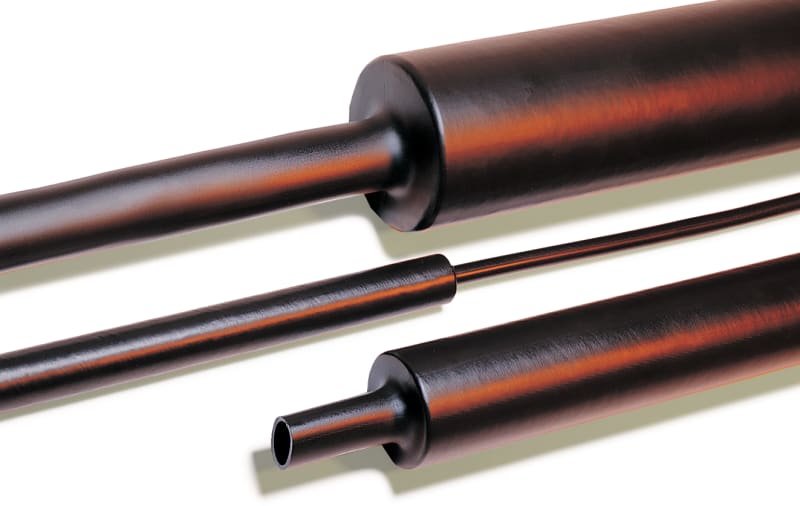

Heat Shrink Tubing MA47 12/3 mm Black 1 m

MA47 medium-wall adhesive-lined heat-shrink tubing with a 4:1 shrink ratio, resistant to solvents, acids and alkaline fluids.

Manufacturer part number (MPN)

323-20120 EAN / GTIN: 4031026240220 Sales unit: pcs Package quantity: 120 pcs OEM part description: MA47-12/3-PO-X-BK Type: MA47-12/3 Product family: MA47 - medium wall adhesive lined Serration: Medium-Wall material: Polyolefin, cross-linked (PO-X) Colour: Black (BK) Length: 1.0 m Wall thickness: 1.8 mm Supplied diameter (min.): 12.0 mm Recovered diameter (max.): 3.0 mm Operating temperature: -55 °C to +110 °C Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes Hazardous goods: No Weight per unit: 0.0475 kg Packed in: pcs. Inner pack quantity: 10 Inner pack type: bag Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 31231314 Behaviour At Low Temperature: not cracking Behaviour at Heat Shock: not cracking, not fluid, not dripping Behaviour at low Temperature test method: ASTM D2671 Elongation At Heat Aging: 300 % Heat Aging Test: 168h/150°C Heat Aging test method: ASTM D2671 Heat Shock Test: 4h/225°C minimum Tensile Strength At Heat Aging: 12 MPa Printable: No Model: Medium-walled Wall thickness after shrinking: 2 mm Inner diameter before heat-shrink: 12 mm Inner diameter after heat-shrink: 3 mm Transparent: No With inner glue: Yes Shrink rate: 4:1 UL approval: No

HS Code

3917.32

• EAN 4031026240220
• SAP 1000722160
• Code 8450080
