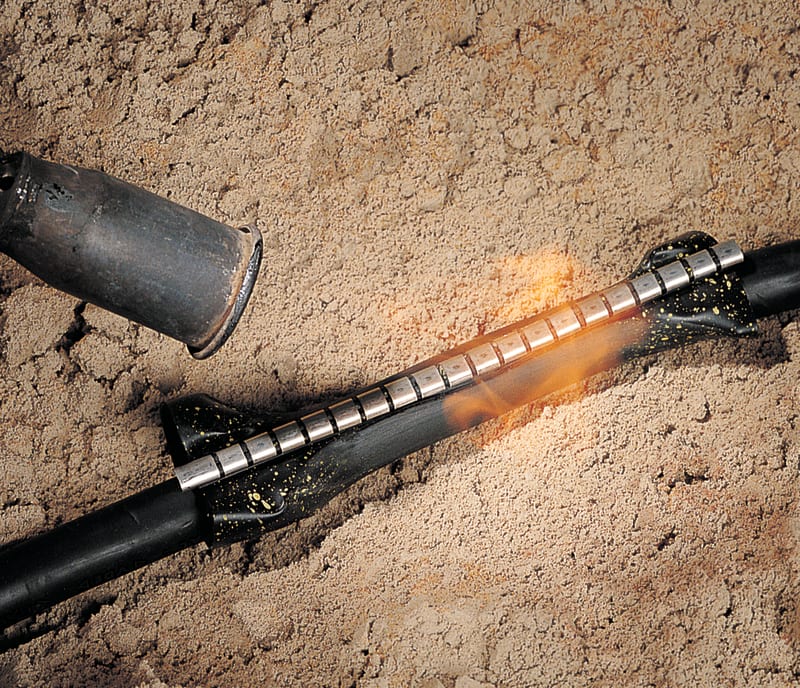

Heat Shrink Wraparound Sleeve 76-22 Black with Adhesive Lining

Hellermann 450-20022 WAC 75/22 reparasjonshylser RMS 75-22. Black with adhesive.

Manufacturer part number (MPN)

450-20022

EAN / GTIN

7070604000242

Sales unit

pcs

OEM part description

RMS 76-22-PO-X-BK

Type

RMS 76-22

Product family

RMS

Serration

Shrink Cast

Material

Polyolefin, chemically cross-linked (PO-X)

Colour

Black (BK)

Length

1000.0 mm

Wall thickness

2.50 mm

Supplied diameter (min.)

76.0 mm

Recovered diameter (max.)

22.0 mm

Pre-printed

Yes

Operating temperature

-40 °C to +120 °C

UV stabilised

Yes

Halogen-free

Yes

RoHS compliant

Yes

ELV compliant (Article 4-2)

Yes

UL recognised (US and Canada)

No

Hazardous goods

No

Weight per unit

1.0 kg

Package content

1000.0 mm

Inner pack quantity

1

Inner pack type

bag

Country of origin

IN

Customs tariff number

85472000

ETIM 9.0 class

EC000219

Cable ⌀ max

65 mm

Cable ⌀ min

28 mm

Shrink Ratio

up to 4.5:1

With inner glue (Yes/No)

Yes

For Object Outside Diameter

32.8-65.2 mm

Longitudinal Change After Shrinkage

-10% max.

Adhesive

Hot melt adhesive

Dielectric Strength

30 kV/mm

Model

Shrink cast

UV resistant

Yes

Strengthened construction

No

Inner diameter before heat-shrink

76 mm

Inner diameter after heat-shrink

22 mm

For cable outer diameter

28–65 mm

HS Code

3921.90
