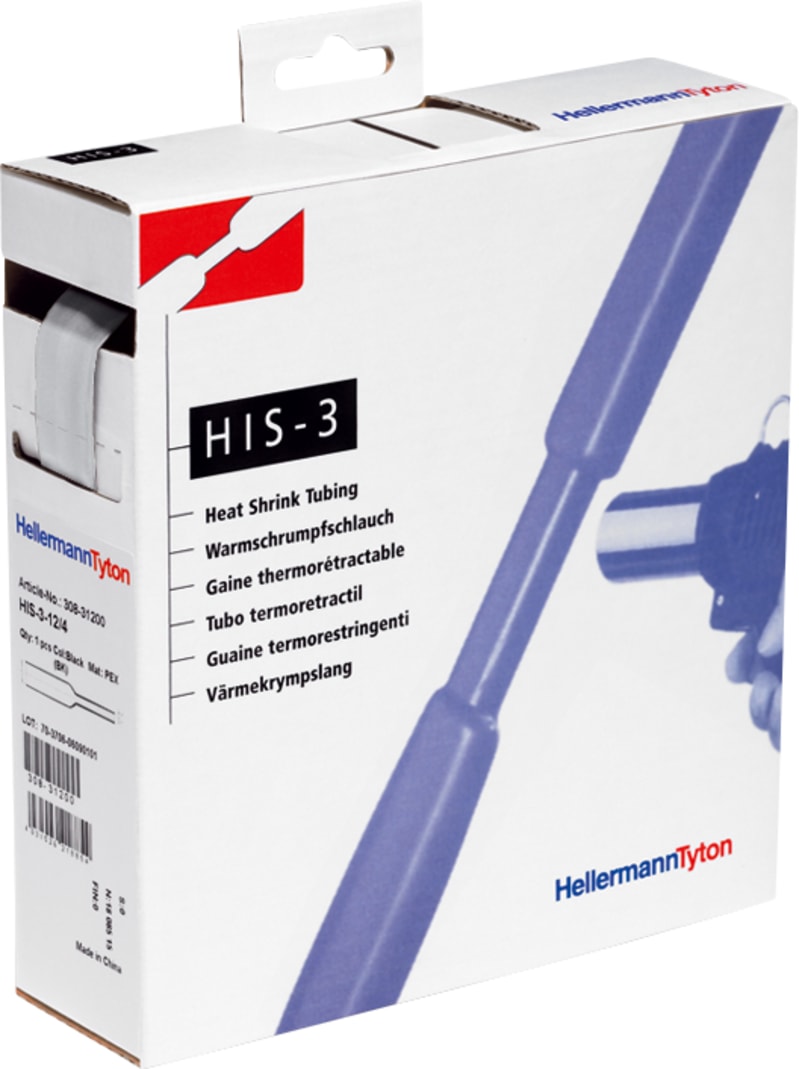

Heat Shrink Tubing HIS3 1.5/0.5 mm 10 m Clear

Hellermann 308-30153 Heat-shrink tubing in dispenser box clear, HIS3 1,5/0,5mm 10m.

Manufacturer part number (MPN)

308-30153 EAN / GTIN: 4031026218670 Sales unit: pcs OEM part description: HIS-3-1.5/0.5-PO-X-CL Type: HIS-3-1.5/0.5 Product family: HIS-3 Serration: Thin-Wall material: Polyolefin, cross-linked (PO-X) Colour: Transparent (CL) Length: 10 m Wall thickness: 0.45 mm Supplied diameter (min.): 1.6 mm Recovered diameter (max.): 0.5 mm Operating temperature: -55 °C to +135 °C Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes Standards: CSA -C22.2 No.198.1, UL 224 Hazardous goods: No Weight per unit: 0.025 kg Package content: 10 m Packed in: pcs. Inner pack quantity: 1 Inner pack type: carton Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour At Low Temperature: not cracking Behaviour at Heat Shock: not fluid, not dripping, not cracking Behaviour at low Temperature test method: UL 224 Elongation At Heat Aging: 400 % Heat Aging Test: 168h/175°C Heat Aging test method: UL 224 Heat Shock Test: 4h/250°C minimum Tensile Strength At Heat Aging: 13 MPa Model: Thin-walled Wall thickness after shrinking: 0.45 mm Inner diameter before heat-shrink: 1.5 mm Inner diameter after heat-shrink: 0.5 mm Transparent: Yes Printable: No With inner glue: No Shrink rate: 3:1 UL approval: No

HS Code

3917.32

• EAN 4031026218670
• SAP 1000008298
• Code 866359
