Hellermann

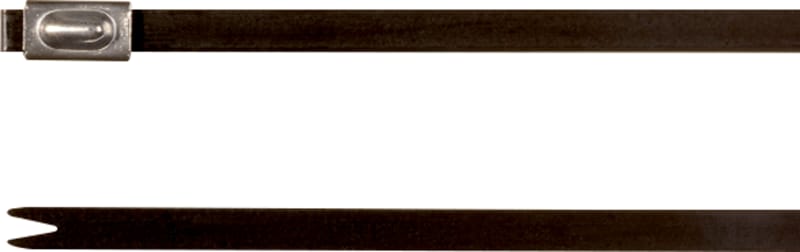

Steel band MBT49UHFC 1245X16MM
Part number111-01520EAN / GTIN5022660341731HS code7326.90
Electrical Components
Cable Ties & Wire Management
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hellermann 111-01520 Cable tie in acid-resistant stainless steel with belegg L: 1.245 mm W: 16 mm black 25 pc HF LFH RoHS.
Technical Specifications
- Manufacturer part number (MPN)
- 111-01520 EAN / GTIN: 5022660341731 Sales unit: pcs Package quantity: 25 pcs OEM part description: MBT49UHFC-SS316L-BK Type: MBT49UHFC Product family: MBT-FC-Series, stainless steel 316L Serration: Not Serrated material: Stainless Steel (SS316L) Colour: Black (BK) minimum tensile strength: 2500 N Bundle diameter: 25-380 mm Length: 1245 mm Width: 16 mm Thickness: 0.38 mm Closure type: ball bearing lock Releasable closure: No Identification plate position: none Operating temperature: -80 °C to +538 °C Flammability rating: non-burning (except coating), low smoke in accordance with CSA C22.2 No. 62275:21 Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes Standards: CSA -C22.2 no. 62275, UL 62275 Hazardous goods: No Weight per unit: 0.054 kg Packed in: bag Inner pack quantity: 25 Inner pack type: bag Country of origin: GB Customs tariff number: 73269098 ETIM 9.0 class: EC000046 UNSPSC code: 39121703 Internet Customer Notice: For hard, smooth surface applications, we recommend the use of our LFPC protective channels. Limited Fire Hazard: Yes Operating Temperature Coating: -50 °C to +150 °C Dimensions: 1245x16 mm Detectable: Yes Band width: 16 mm Length belt/tape/tie: 1245 mm Tie thickness: 0.38 mm Max. bundle diameter: 380 mm Min. holding force: 2500 N Min. bundle diameter: 25 mm Min. tensile strength: 2500 N Mounting temperature: -50–150 °C Band closure: Ball latch material quality: Stainless steel 316 (V4A) Surface protection: Plastic-coated UV-stable according to ASTM D6779: Yes Transparent: No Fluorescent: No Text strip: None Type of fastening: None VG approval: No MIL approval: No UL approval: Yes Model: Without toothing
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 5022660341731
- SAP 1000501987
- Code 8618364
Product Documentation
Document preview: HellermannTyton 111-01520 — Technical Data Sheet (OEM)
More from Hellermann
Hellermann
Weather-resistant Fuse NH00 500V gG 160A
2023613.160
Hellermann
Fuse Cabinet KG 9001 TOMT IP55/65
Hellermann
Heat-Shrink Conductor Marker Tubing TCGT 24/8 mm, Yellow, 26 m
TCGT 24/8mm gul
Hellermann
Heat Shrink Tubing HA47 130/36 mm Black 1 m
321-21300
Hellermann
Fuse NH2 690V GG 315A
2021213.315
Hellermann
Ceramic FUSE 5X25MM K 0,8A
5X25 F 0,8A
Hellermann
Heat Shrink Tubing TFN31 9.0/3.0 mm Clear 30 m
333-42013
Hellermann
Fuse KER.6X32MM 500V K 16A
7006563.16
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 111-01520?
- 111-01520 can be ordered from cballast.com as a Hellermann catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Hellermann product?
- The manufacturer part number is 111-01520.
- What is the HS code for 111-01520?
- The customs tariff (HS) code for 111-01520 is 7326.90.
- Who manufactures 111-01520?
- 111-01520 is a Hellermann product in the Electrical Components range.
- Is a datasheet available for 111-01520?
- Yes — the 111-01520 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 111-01520?
- The minimum order quantity is 1.
- Is 111-01520 available?
- Yes — 111-01520 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
