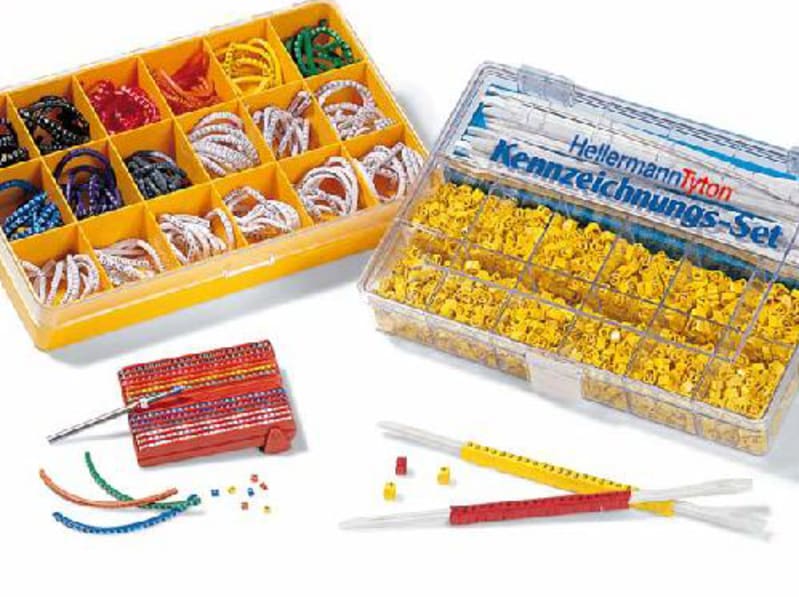

Label Cassette RED HGPC1-3

Hellermann 518-06013 HT1-3 cass.

Manufacturer part number (MPN)

518-06013

EAN / GTIN

5022660520167

Sales unit

pack

Package quantity

10 pack

OEM part description

HGPC1-3-PVC-Special

Type

HGPC1-3

Serration

Other

Material

Flexible Polyvinyl Chloride, cadmium free (PVC)

Colour

White (WH), yellow (YE), international resistor colour code (CC)

Bundle diameter

1.0-3.00 mm

Length

3.5 mm

Fixation method

Suspend

Print method

hotfoil print

Label space

No

Pre-printed

Yes

Operating temperature

-65 °C to +105 °C, intermittent +135 °C

Flammability rating

UL 94 V0 (3 mm)

RoHS compliant

Yes

Standards

BS-2782-540B, BS-6746C, IEC 757

Packed in

pcs.

Inner pack quantity

1

Inner pack type

pcs.

Country of origin

GB

Customs tariff number

39269098

ETIM 9.0 class

EC001530

Colour of Print

Black (BK)

Content

HGCC1-3: 50 each of markers 0 to 3 and 25 markers size 4 to 9 in the international resistor colour code; 25 each of A, E, L, N, R, S, T, +, - and in white; PTFE-coated applicator tool TJC. HGCC4-9: 25 each of markers 0 to 9 in the international resistor colour code; A, E, L, N, R, S, T, +, - and in white; PTFE-coated TJC applicator tool. Individual sets available as an option. The refill pack for the cassette contains one basic set without TJC applicator tool.

Marking Text

CC 0-9, A,E,L,N,R, S, T + - ⏚

Toothing

None

Core diameter

0.5–0.75 mm

Cable diameter

1–3 mm

Transparent

No

With label space

No

Mounting method

Suspend

HS Code

3926.90

• EAN 5022660520167
• SAP 1000444388
• Code 8127943
