Hellermann

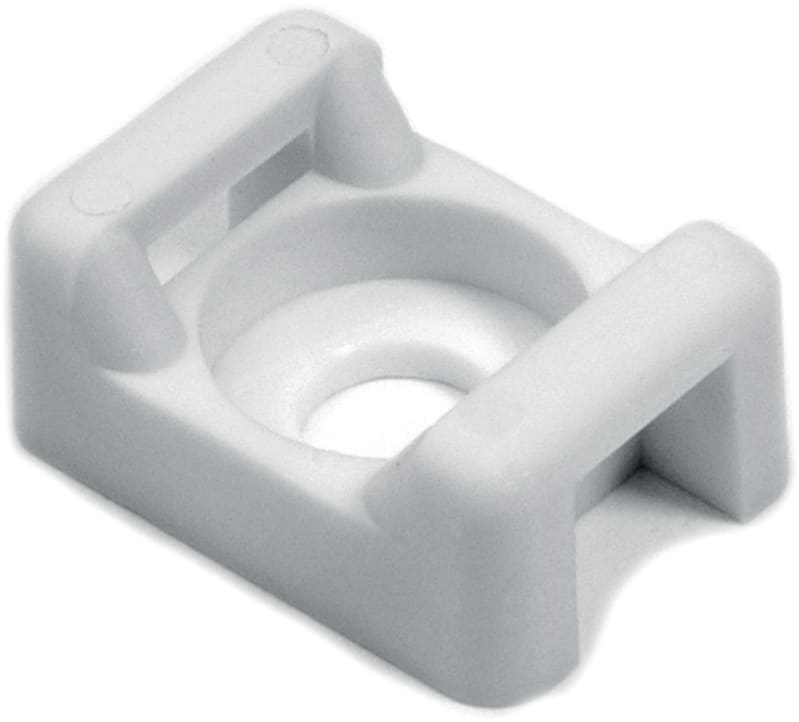

Cable Tie Mount CTM 1 Nat 5 x 14.7 mm
Part number151-30404EAN / GTIN4031026414348HS code3926.90
Electrical Components
Cable Ties & Wire Management
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hellermann 151-30404 Festsokkel f/screw/nitte.
Technical Specifications
- Manufacturer part number (MPN)
- 151-30404
- EAN / GTIN
- 4031026414348
- Sales unit
- pcs
- Package quantity
- 100 pcs
- OEM part description
- CTM1-PA66-WH
- Type
- CTM1
- Product family
- Cable tie mounts with curved design
- Material
- Polyamide 6.6 (PA66)
- Colour
- White (WH)
- Length
- 14.7 mm
- Width
- 9.4 mm
- Height
- 6.90 mm
- Fixation method
- Screw Mount
- Operating temperature
- -40 °C to +85 °C
- Flammability rating
- UL 94 V2
- UV stabilised
- No
- RoHS compliant
- Yes
- ELV compliant (Article 4-2)
- Yes
- UL recognised (US and Canada)
- Yes
- Standards
- ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
- Hazardous goods
- No
- Weight per unit
- 0.00044 kg
- Packed in
- pack
- Inner pack quantity
- 100
- Inner pack type
- bag
- Country of origin
- MX
- Customs tariff number
- 39269097
- ETIM 9.0 class
- EC000449
- UNSPSC code
- 39121717
- For Ties
- T18 - T50
- Mounting Screw Type
- #8 (M4) Screw
- Strap Width max. (G)
- 5.0 mm
- for Hole ⌀ (FH)
- 4.8 mm
- CE Certification
- Yes
- CSA Certified
- No
- UL Listed (US and Canada)
- No
- Suitable for cable tie width to
- 5 mm
- Material quality
- Polyamide (PA)
- Type of fastening
- Screw and rivet
- Diameter mounting hole
- 4.8 mm
- Detectable
- No
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4031026414348
- SAP 1000567069
- Code 8681545
Product Documentation
Document preview: HellermannTyton 151-30404 — Technical Data Sheet (OEM)
