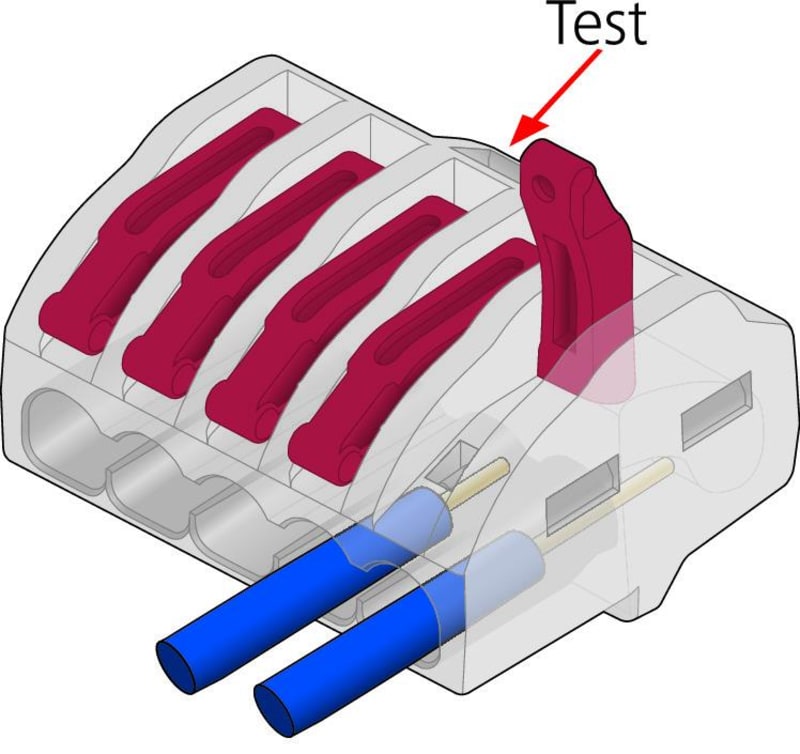

HellermannTyton HelaCon Plus Releasable Splice Connector HCRN-5, Blister
Pricing
Request a quote
We reply within 24 hours
Product Description
HellermannTyton HCRN-5 releasable push-in splice connector from the HelaCon Plus Releasable family, supplied as a 5-pack blister. Polycarbonate housing (transparent), 5 clamp positions, rated 32 A / 450 V, cable diameter 0.5-2.5 mm, stripping length 10 mm. Suitable for solid, stranded and flexible conductors from 0.2 to 4 mm2; halogen-free, RoHS compliant, UL 94 V-0.
Technical Specifications
- Manufacturer part number (MPN)
- 148-90064
- EAN / GTIN
- 4031026657912
- Sales unit
- pcs
- Package quantity
- 5 pcs
- OEM part description
- HCRN-5-Blister-PC-CL
- Type
- HCRN-5-Blister
- Product family
- HelaCon Plus Releasable
- Material
- Polycarbonate (PC)
- Colour
- Transparent (CL)
- Length
- 26.0 mm
- Width
- 20.5 mm
- Height
- 14.0 mm
- Operating temperature
- -30 °C to +85 °C
- Flammability rating
- UL 94 V0
- Halogen-free
- Yes
- RoHS compliant
- Yes
- ELV compliant (Article 4-2)
- Yes
- Standards
- UL 486C
- Hazardous goods
- No
- Weight per unit
- 0.0082 kg
- Packed in
- box
- Inner pack quantity
- 5
- Inner pack type
- pack
- Country of origin
- CN
- Customs tariff number
- 85369010
- ETIM 9.0 class
- EC000446
- UNSPSC code
- 39131707
- Max Current
- 32 A
- Max Voltage
- 450 V
- Number of Conductors
- 5
- Suitable for flexible core (Yes/No)
- Yes
- Suitable for multi wire core (Yes/No)
- Yes
- Suitable for solid core (Yes/No)
- Yes
- Stripping Length
- 10 mm
- Wire Range (VDE)
- 0.2 to 4.0 mm² all types of wire
- UL File link
- Link
- Nominal current
- 32 A
- Nominal voltage
- 450 V
- Number of clamp positions
- 5
- Cable diameter
- 0.5–2.5 mm
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 0.5–4 mm²
- Nominal cross section
- 0.2–4 mm²
- Suitable for multi-wire conductors
- Yes
- Suitable for flexible conductors
- Yes
- Transparent
- Yes
- With operation lever
- Yes
- Min. AWG-size
- 24
- Max. AWG-size
- 12
- Type of locking/unlocking
- Lever
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4031026657912
- SAP 1200524834
- Code 82690166
Product Documentation
