Hellermann
Tubing stainless SSC40 10 m
Part number166-30206EAN / GTIN4031026306018HS code8307.10
Electrical Components
Cable Ties & Wire Management
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

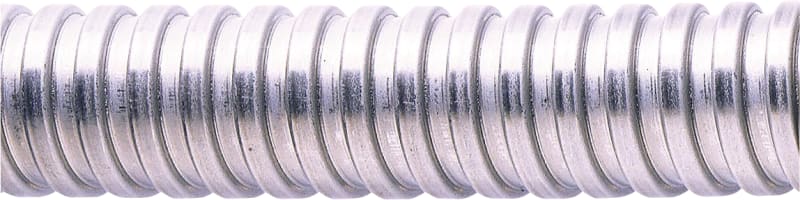

Hellermann 166-30206 SSC40 stainless steel hose.
Technical Specifications
- Manufacturer part number (MPN)
- 166-30206
- EAN / GTIN
- 4031026306018
- Sales unit
- m
- Package quantity
- 10 m
- OEM part description
- SSC40-SS316-ML
- Type
- SSC40
- Product family
- SSC Stainless steel conduit
- Material
- Stainless Steel (SS316)
- Colour
- Metal (ML)
- Length
- 10 m
- Operating temperature
- -100 °C to +600 °C
- Halogen-free
- Yes
- RoHS compliant
- Yes
- ELV compliant (Article 4-2)
- Yes
- Hazardous goods
- No
- Weight per unit
- 0.608 kg
- Packed in
- reel
- Inner pack quantity
- 10
- Inner pack type
- reel
- Country of origin
- GB
- Customs tariff number
- 83071000
- ETIM 9.0 class
- EC001179
- Bending Radius min. (R)
- 80 mm
- Diameter (D)
- 37.3 mm
- Inside ⌀ (ID)
- 37.6 mm
- Nominal ⌀
- 40 mm
- Outside ⌀ (OD)
- 42.1 mm
- Weight
- 410 g/m
- CE Certification
- Yes
- EN61386 Classification
- 445640404410
- Electrical characteristics
- Not specified
- IP-Rating
- IP40
- Case quantity
- 200
- Case type
- carton
- Pallet quantity
- 200
- Pallet type
- pallet
- Outer diameter
- 42.1 mm
- Inner diameter
- 37.6 mm
- Surface protection
- Untreated
- Bending radius, static
- 80 mm
- Flame accelerating
- No
- Sealing
- No sealing
- Suitable for EX-applications
- No
- Approved according to FI
- No
- With approval according to UL
- No
- Approved according to CSA
- No
- Sheathing material 1st coating
- Not sheathed
- Sheathing material 2nd coating (exterior)
- Not sheathed
- Nominal diameter
- 40 mm
- Degree of protection (IP)
- IP40
- Bending strength
- Flexible
- Approved according to DIN EN 61386-23
- No
Standards & Compliance
- HS Code
- 8307.10
Cross References
- EAN 4031026306018
- SAP 1000445688
- Code 8544433
Product Documentation
Document preview: Tubing stainless SSC40 10 m (166-30206) — Specification sheet
