Hellermann

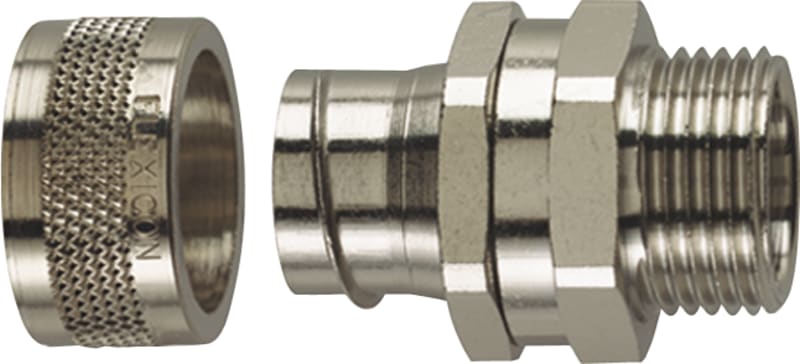

Nipple stainless SSC20-SM-M20
Part number166-30422EAN / GTIN4031026306544HS code7307.29
Electrical Components
Cable Ties & Wire Management
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hellermann 166-30422 SSC20-SM-M20 stainless steel gland.
Technical Specifications
- Manufacturer part number (MPN)
- 166-30422
- EAN / GTIN
- 4031026306544
- Sales unit
- pcs
- Package quantity
- 10 pcs
- OEM part description
- SSC20-SM-M20-SS316-ML
- Type
- SSC20-SM-M20
- Product family
- SSC-SM Swivel external thread, IP40
- Serration
- Straight
- Material
- Stainless Steel (SS316)
- Colour
- Metal (ML)
- Length
- 35.5 mm
- Height
- 24 mm
- Operating temperature
- -100 °C to +600 °C
- Halogen-free
- Yes
- RoHS compliant
- Yes
- ELV compliant (Article 4-2)
- Yes
- Hazardous goods
- No
- Weight per unit
- 0.057 kg
- Packed in
- bag
- Inner pack quantity
- 1
- Inner pack type
- bag
- Country of origin
- GB
- Customs tariff number
- 73072910
- ETIM 9.0 class
- EC001180
- Metallic Fitting Type
- Standard
- Thread type
- metric
- Type of connection
- Thread
- A/F Thread (A/F2)
- 24 mm
- Lowest inner diameter
- 15.3 mm
- Min. Bore Size (B)
- 15.3 mm
- Nominal ⌀
- 20 mm
- Thread Length (TL)
- 10.0 mm
- Thread Size
- M20
- CE Certification
- Yes
- IP-Rating
- IP40
- Outer pack type
- carton
- Model
- Straight
- Surface protection
- Untreated
- Total length
- 35.5 mm
- Construction type
- External thread
- Housing material
- Steel
- Revolving thread
- Yes
- Lowest inner diameter hose
- 15.3 mm
- Total height
- 24 mm
- Approved in combination with protective conduit CSA
- No
- One-piece
- No
- Degree of protection (IP) conduit dependent
- 40
- Approved in combination with protective conduit UL
- No
- Approved in combination with protective conduit FI
- No
- Nominal diameter
- 20 mm
- Thread connection size
- M20 x 1.5
- Connection type to housing
- Thread
Standards & Compliance
- HS Code
- 7307.29
Cross References
- EAN 4031026306544
- SAP 1000425932
- Code 8513553
Product Documentation
Document preview: Nipple stainless SSC20-SM-M20 (166-30422) — Specification sheet
