Hellermann

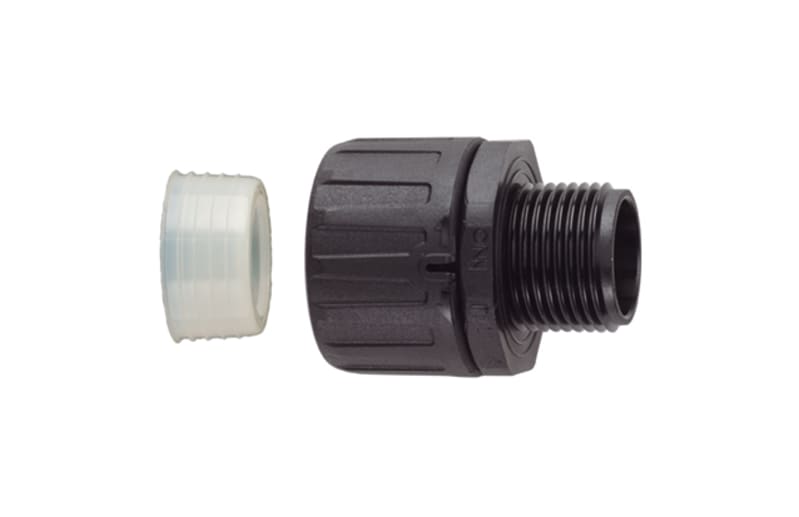

Nipple corrugated Tubing HGL16-S-M20
Part number166-21602EAN / GTIN4031026303390HS code3917.40
Electrical Components
Cable Ties & Wire Management
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hellermann 166-21602 HGL16-S-M20.
Technical Specifications
- Manufacturer part number (MPN)
- 166-21602
- EAN / GTIN
- 4031026303390
- Sales unit
- pcs
- Package quantity
- 10 pcs
- OEM part description
- HGL16-S-M20-PA66/TPE-BK
- Type
- HGL16-S-M20
- Product family
- HGL-S Straight fitting, IP68
- Serration
- Straight
- Material
- Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
- Colour
- Black (BK)
- Length
- 44 mm
- Operating temperature
- -50 °C to +135 °C
- Flammability rating
- UL 94 V2
- Halogen-free
- Yes
- RoHS compliant
- Yes
- ELV compliant (Article 4-2)
- Yes
- UL recognised (US and Canada)
- Yes
- Standards
- CSA -C22.2 No.227.3
- Hazardous goods
- No
- Weight per unit
- 0.0136 kg
- Packed in
- bag
- Inner pack quantity
- 10
- Inner pack type
- bag
- Country of origin
- GB
- Customs tariff number
- 39174000
- ETIM 9.0 class
- EC001176
- Brass Thread (Y/N)
- No
- Strain Relief Function (Y/N)
- No
- Swivel Thread (Y/N)
- No
- Thread type
- metric
- Type of connection
- Snap-connection
- Lowest inner diameter
- 14.5 mm
- Min. Bore Size (B)
- 14.5 mm
- NW ⌀
- 12 mm
- Nominal ⌀
- 16 mm
- Outside ⌀ max (OD max.)
- 29 mm
- Model
- Straight
- Thread length
- 14 mm
- Total length
- 44 mm
- Construction type
- External thread
- Revolving thread
- No
- Lowest inner diameter hose
- 14.5 mm
- Approved in combination with protective conduit UR
- Yes
- Approved in combination with protective conduit CSA
- No
- Max. outer diameter hose
- 29 mm
- Thread material
- Polyamide (PA)
- Thread size
- 20
- Nominal diameter
- 16 mm
- Degree of protection (IP)
- IP66
- Transparent
- No
- Thread connection size
- M20 x 1.5
- Material sealing
- Thermoplastic elastomer (TPE)
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 4031026303390
- SAP 1000425564
- Code 874419
Product Documentation
Document preview: Nipple corrugated Tubing HGL16-S-M20 (166-21602) — Specification sheet
