Hellermann
End Cap m adhesive for 12/4mm
Part number416-12055EAN / GTIN5022660646003HS code3917.32
Tools & Workshop Consumables
Chemicals & Consumables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

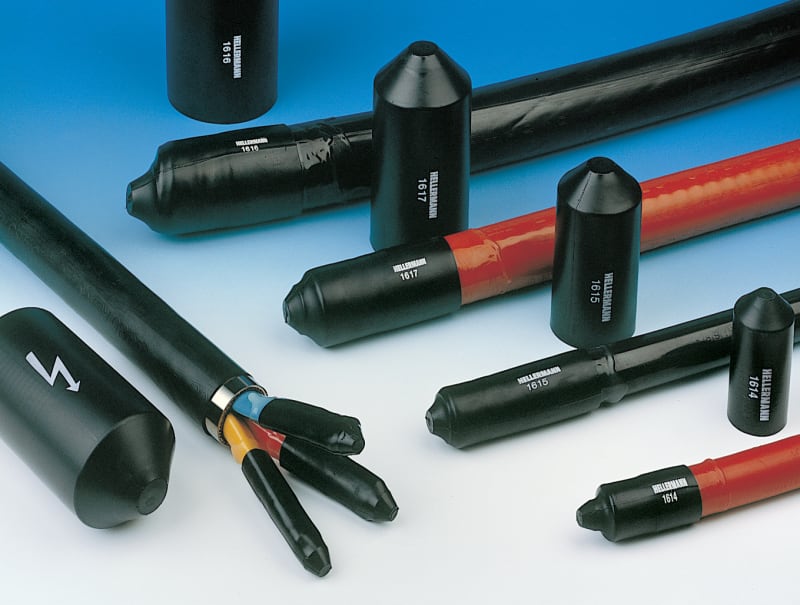

Hellermann 416-12055 End Cap m adhesive for 12/4mm.
Technical Specifications
- Manufacturer part number (MPN)
- 416-12055
- EAN / GTIN
- 5022660646003
- Sales unit
- pcs
- Package quantity
- 1000 pcs
- OEM part description
- 1612-1-B5W2-PO-X-BK
- Type
- 1612-1-B5W2
- Product family
- Helashrink 1600 Series, low voltage
- Material
- Polyolefin, cross-linked (PO-X)
- Colour
- Black (BK)
- Bundle diameter
- 4.0-8.0 mm
- Supplied diameter (min.)
- 12.0 mm
- Recovered diameter (max.)
- 4.0 mm
- Pre-printed
- Yes
- Operating temperature
- -55 °C to +80 °C
- Flammability rating
- ASTM D635
- RoHS compliant
- Yes
- Weight per unit
- 0.0025 kg
- Packed in
- carton
- Inner pack quantity
- 1000
- Inner pack type
- bag
- Country of origin
- CN
- Customs tariff number
- 39173290
- ETIM 9.0 class
- EC000218
- UNSPSC code
- 39121721
- Marking Text
- Hellermann
- Max Voltage
- 600 V
- Shrink Ratio
- up to 3:1
- ⌀H max. b
- 4.0 mm
- ⌀H min. a
- 12.0 mm
- Flexibility
- semi rigid
- For Object Outside Diameter
- 5.6-10.4 mm
- HW ± 20 %
- 2.6 mm
- P ± 10 %
- 40 mm
- W ± 10 %
- 2 mm
- W ± 20 %
- 2.6 mm
- Adhesive
- W2
- Model
- Medium-walled
- Halogen free
- No
- Wall thickness after shrinking
- 2.6 mm
- Total length after shrink
- 40 mm
- Inner diameter before heat-shrink
- 12 mm
- Inner diameter after heat-shrink
- 4 mm
- Nominal cross section
- 12.5–50 mm²
- Transparent
- No
- Printable
- No
- With inner glue
- Yes
- Shrink rate
- 3:1
- UL approval
- No
Standards & Compliance
- HS Code
- 3917.32
Cross References
- EAN 5022660646003
- SAP 1200000232
- Code 8372753
Product Documentation
Document preview: End Cap m adhesive for 12/4mm (416-12055) — Specification sheet
More from Hellermann
Hellermann

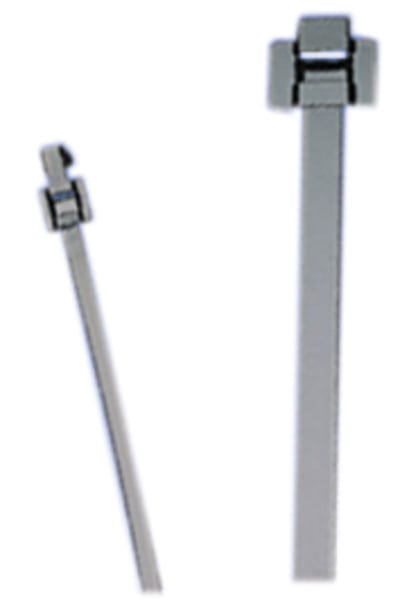

HellermannTyton MLT8SS5 Stainless Steel Cable Tie 230 x 5 mm, 316L, 100-pack
111-94080
Hellermann

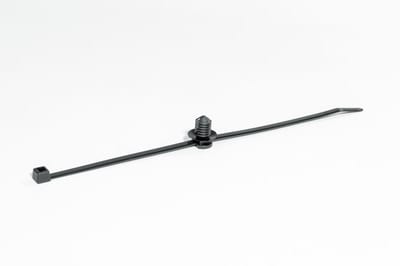

Cable tie m bracket 7,7-8mm hole
111-85880
Hellermann
Cable Marker on rail 10X60 red 1000 pr/rl
CM-060x010-RD
Hellermann
End Cap u adhesive for 75/36mm
416-17016
Hellermann
Hensel Membrane Gland M 25ESM 2
ESM 25
Hellermann

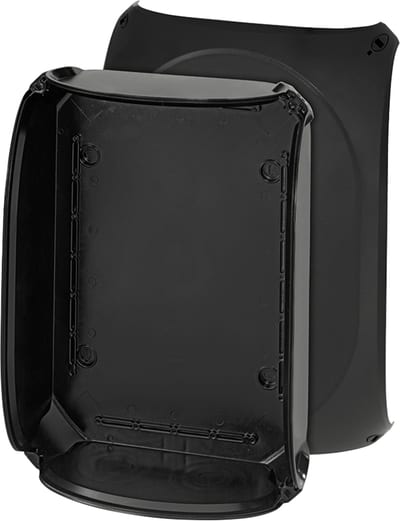

Junction BOX KF 5000 C SV EMPTY
Hellermann

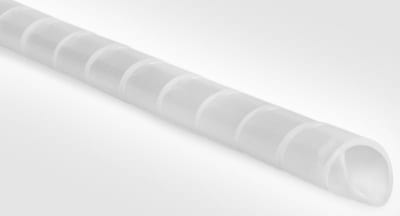

Spiral Wrap SBPE9 NAT 30 m
161-41200
Hellermann

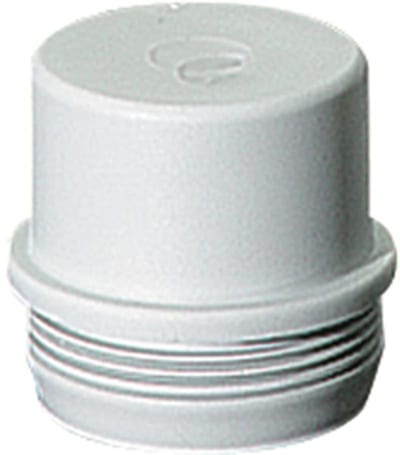

Hensel Membrane Gland M 40ESM 4
